Cold water pressure washer designed for long run times.
Call 01403 273 444 for best price

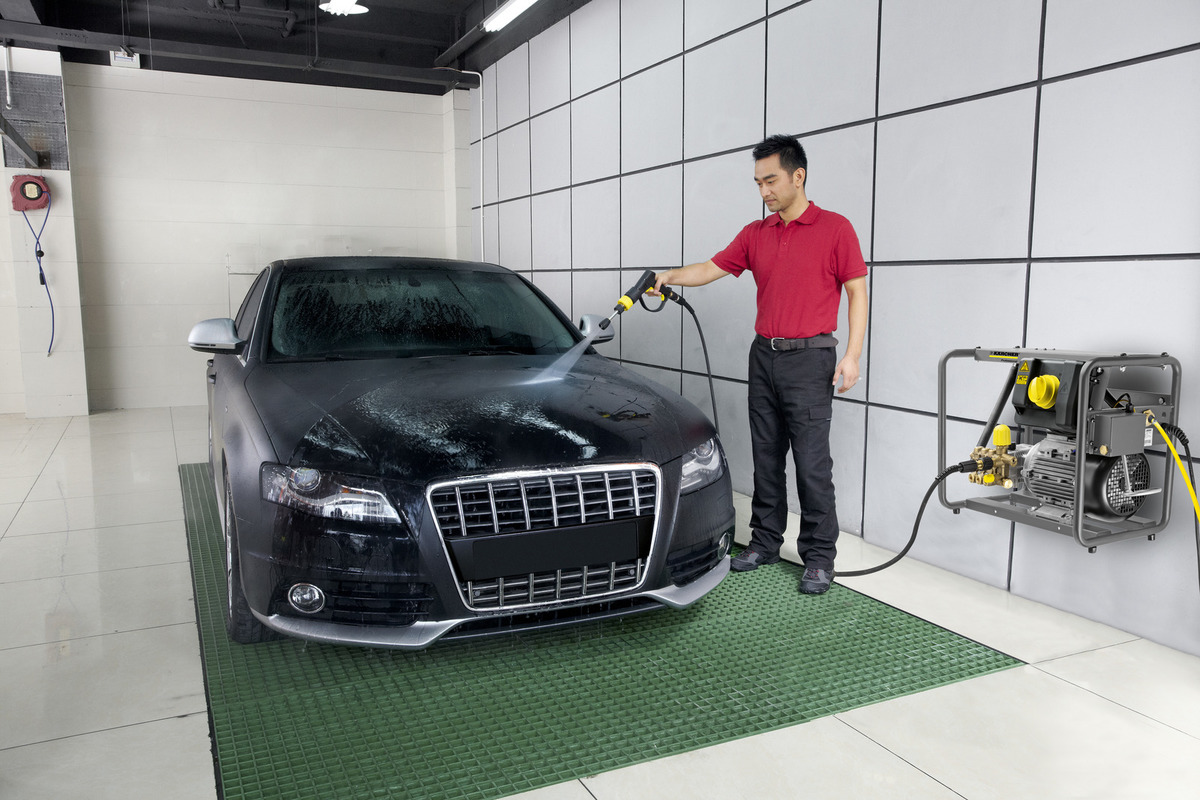

The HD 7/16-4 Cage Classic is a robust, easy to operate pressure washer. The machine is designed for long operational periods in harsh conditions performing reliably during various cleaning tasks. The large water filter protects the powerful crankshaft pump. Mechanical toggle switch combines energy saving together with ease of use and protects the gun from being damaged. The robust cage frame provides machine protection and allows the unit to be wall or floor mounted.
Features and benefits
Durable and reliable
4-pole electric motor. Brass cylinder head and ceramic piston. Reliable crankshaft pump with additional thermostat valve.
Robust and secure
Robust tubular frame construction ensures optimum protection of the machine. Built-in handles for transport.
Service-friendly
Excellent access to all relevant components. Large water inlet filter for easy servicing.
Versatile
- The machine can be attached to the floor or the wall.
- Practical trigger gun storage with auto off function (Total Stop optional).
Specifications
Technical data
| Flow rate (l/h) | 400 - 700 |
| Operating pressure (bar/MPa) | 70 - 160 / 7 - 16 |
| Max. pressure (bar/MPa) | 220 / 22 |
| Power rating (kW) | 4.3 |
| Power rating (kW) | 4.3 |
| Weight (with accessories) (kg) | 53.5 |
| Weight incl. packaging (kg) | 58.8 |
| Dimensions (L x W x H) (mm) | 625 x 500 x 360 |
Equipment
- Trigger gun, EASY!Force
- High-pressure hose, 10 m
- Spray lance, 100 mm
- Power nozzle
Accessories
600 mm stainless steel lance (manual coupling) with ergonomic handle for ease of use and protection. Rotatable 360° under pressure.
For hard-to-reach areas: High-pressure articulated joint with infinite angle adjustment up to 120°. Simply attach directly to the spray lance of the pressure washer.
20 m high-pressure hose (M 22 x 1.5) with kink protection. With patented rotating AVS trigger gun connector and manual coupling. Further data: DN 8/155°C/315 bar.
Brass double connector for connecting and extending high-pressure hoses. With rubber protection. Connector: 2x M 22 x 1.5 m.
The Karcher FR 30 ME high-quality, hot water resistant surface cleaner. The FR 30 ME has a stainless steel casing with a working width of 300 mm, ideal for indoor cleaning, for example in the food industry.
Thanks to automatic suction of the dirty water, the stainless steel FRV 30 Me Surface Cleaner makes surface cleaning more efficient in both inside and outside areas. Hot water cleaning up to 85°C.
Cleaning Agents
For optimal protection of hot water high-pressure cleaners with System Care option. System Care Advance 2 provides the following protection functions for your equipment:– Protection against limescale deposits in the heating coil (up to 150°C) – Pump care additive for continuous lubrication and care of the high-pressure pump – Protection against black water contamination (rust formation in the heating coil in the case of very soft water) – Corrosion protection for all parts in contact with water.
Scale inhibitor for hot water high-pressure cleaners with integral corrosion protection, especially for use in new HDS units with System Care option. The System Care Advance 1 RM 110 ASF formula offers improved protection against limescale deposits on heater coils (up to 150 °C) and provides integral corrosion protection for components in contact with water.
Powerful facade cleaner with gel formula. Removes soot, oil, grease and environmental stains. Suitable for façades clad with stone, brick, rough-cast plaster, plastic, wood and glass.
Powerful deep cleaner effectively removes the most stubborn stains, such as oil, grease, soot, blood and proteins. Low foam production. Particularly suited for floor cleaning by machine and for processing with hard surface cleaners. NTA free.
Removes even the toughest grease, protein, oil and soot soiling from floors, working surfaces, machines, etc. (particularly suitable for food processing operations). Easy to use, gentle cleaning action. Washes clean without residue.
The alkaline Foam Cleaner RM 838 is for contactless vehicle washing which effortlessly removes heavy oil and grease stains, insect residues and road dirt and is gentle on paintwork.
