The Karcher HDS 7/10-4 M is a medium class hot water high-pressure cleaner with a host of user-friendly features.
1-3 WORKING DAYS DELIVERY ON ALL ORDERS
*NEXT DAY DELIVERY AVAILABLE
£3199.00 (inc VAT)
£2,665.83 (excl VAT)
Part number: K1077901
► Delivery in 1-3 working days
Do you need help? Call 01403 273 444
Often purchased together
Total item price: £x (inc VAT)
Kärcher’s HDS middle class hot water high-pressure cleaners reach very high levels of performance, reliability and economy. With innovative features such as the eco!efficiency mode, offering fuel savings of up to 20% without compromising cleaning performance, 4-pole motors for high performance and long life, on-board diagnostics, and 3-year burner coil warranty, the HDS middle class range provides our customers with the toughness, cleaning power, and low running costs they demand. The Karcher HDS 7/10-4 M features a 4-pole, air-cooled electric motor with long-life bearings and a 3-piston axial pump with ceramic pistons. With water flow of up to 700 litres per hour, and up to 100 bar pressure, the 7/10 is a great all-round machine with superb performance for daily and deep cleaning jobs.
Features and benefits
Efficiency
In the Eco setting the unit operates in the most economical temperature range (60°C) with full water flow. Burner cycles are optimised to reduce fuel consumption by up to 20% compared to full-load operation.
Maximum efficiency
Highly efficient burner technology. 4-pole, slow-running electric motor guarantees a long working time.
Operational reliability
The large, integrated fine-mesh water filter reliably protects the high-pressure pump against dirt particles. An integrated exhaust gas thermostat switches off the drive motor if the exhaust gas temperature exceeds 300°C. The soft damping system (SDS) compensates for vibrations and pressure surges in the high-pressure system.| Storage |
|
| Mobility concept |
|
| Save energy and time: EASY!Force high-pressure guns and EASY!Lock quick-release locks. |
|
Specifications
Technical data
| Current type (Ph/V/Hz) | 1 / 240 / 50 |
| Flow Rate (l/h) | 350 - 700 |
| Operating pressure (bar/MPa) | 30 - 100 / 3 - 10 |
| Temperature (supply 12°C) (°C) | min. 80 - max. 155 |
| Power rating (kW) | 3.4 |
| Consumption fuel oil (kg/h) | 4.6 |
| Power cable (m) | 5 |
| Fuel tank (l) | 25 |
| Number of users | 1 |
| Mobility | cart |
| Weight (with accessories) (kg) | 159.3 |
| Weight incl. packaging (kg) | 171.3 |
| Dimensions (L × W × H) (mm) | 1330 x 750 x 1060 |
Equipment
- Trigger gun, EASY!Force Advanced
- High-pressure hose, 10 m, Longlife
- Spray lance, 1050 mm
- Power nozzle
- ANTI!Twist
- Tanks for detergent, scale inhibitor and fuel can be filled from outside
- Control panel with indicator lamps
- Pressure switch control
- Electronic service control with LED display
- Two detergent tanks
- Dry running protection
Downloads
Accessories
Thanks to automatic suction of the dirty water, the stainless steel FRV 30 Me Surface Cleaner makes surface cleaning more efficient in both inside and outside areas. Hot water cleaning up to 85°C.
DUO Advanced 1 cup foam lance with two-litre detergent tank and direct switching to high-pressure cleaning. Suitable for Kärcher pressure washers with a flow rate of 400 to 600 l/h.

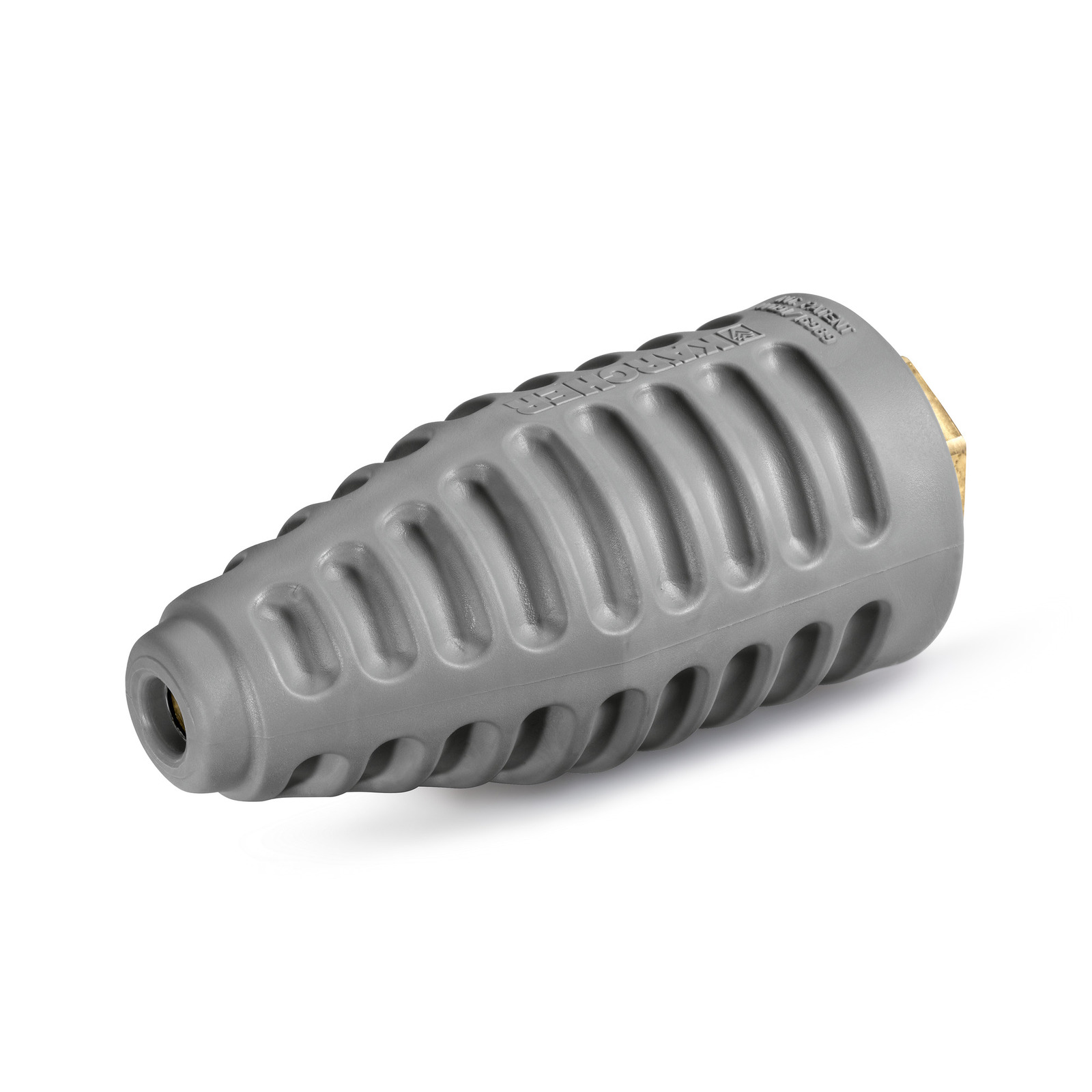

The dirt blaster with rotating pencil jet offers 10 times better cleaning performance. Ceramic nozzle and bearing ring for a long service life. Further data: Max. 300 bar, 30 MPa, 85°C.

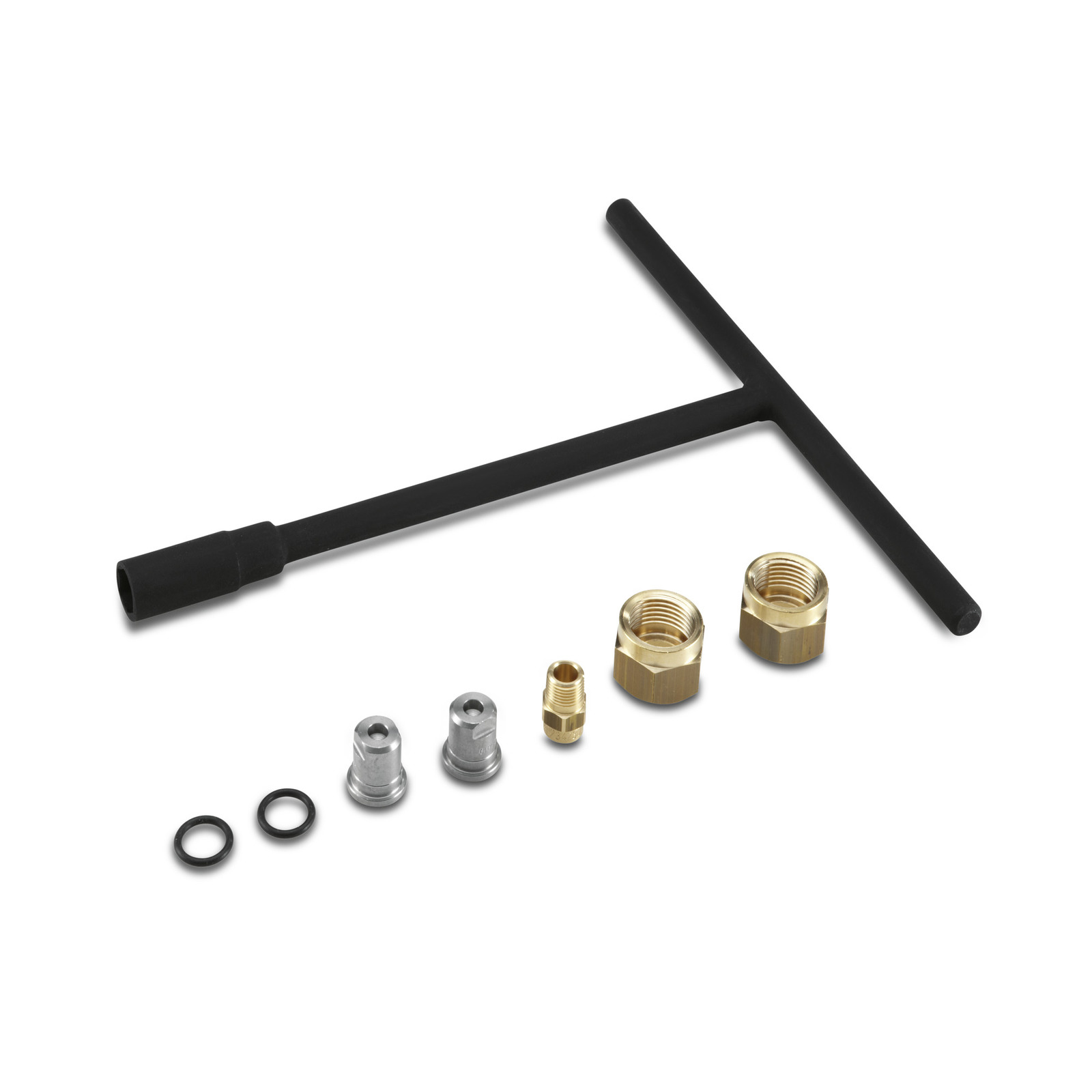

Nozzle kit includes power nozzles and unions. For Kärcher surface cleaners (650 to 850 l/h).
Machine-specific nozzle kit with Kärcher power nozzles and jet nozzle for FRV 30.
