  • 50 l tanks for fresh/dirty water, 51 cm disc brush, traction drive
  • On-board charger + 115 Ah AGM battery, 3 h run time, max. 3060 m²/h
  • App, speed-responsive dosing, automatic filling and cleaning system

Compare

Features and benefits

The B 50 W Bp compact scrubber dryer boasts a particularly robust design. The brush head and squeegee are made from long-lasting cast aluminium – for excellent suction even on structured surfaces and in tight bends. The D 51 single-disc brush head delivers outstanding cleaning results both quietly and reliably. The 115 Ah AGM battery powers the walk-behind machine and enables a long operating duration. The compact design of the walk-behind machine provides a better overview and manoeuvrability even in particularly narrow areas. The wheel drive facilitates operation and reduces the physical strain. The new DOSE dosing system also helps to precisely dose cleaning agents – saving money and resources. The auto-rinse function enables contact-free cleaning of the dirty water tank, the auto-fill system easy filling of the fresh water tank with an automatic water stop function. Fresh water is easy to top up at any tap with the universal filling hose. In addition, advanced settings and information can be easily controlled from your smartphone with the "Machine connect" app.

1533220 det 10502x502

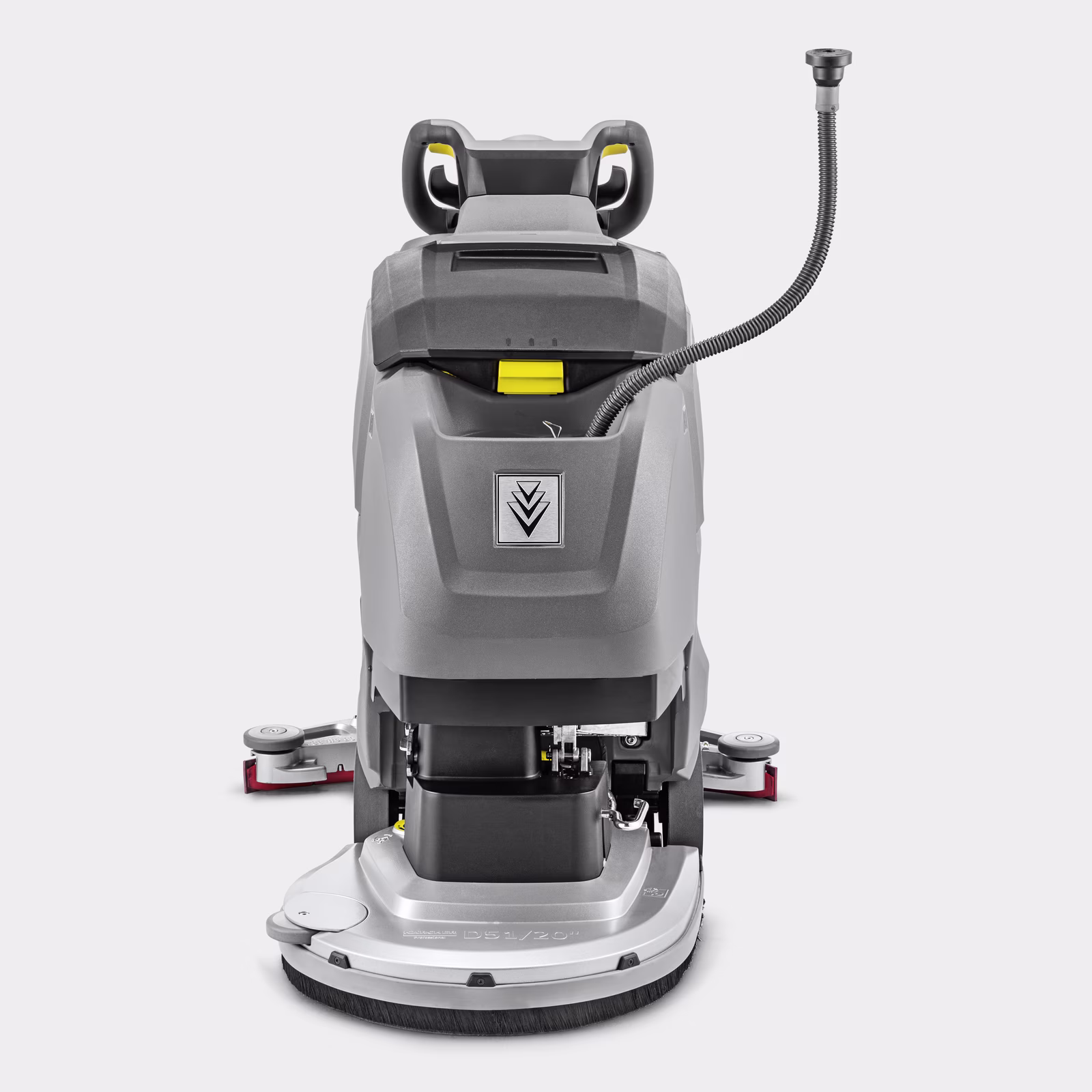

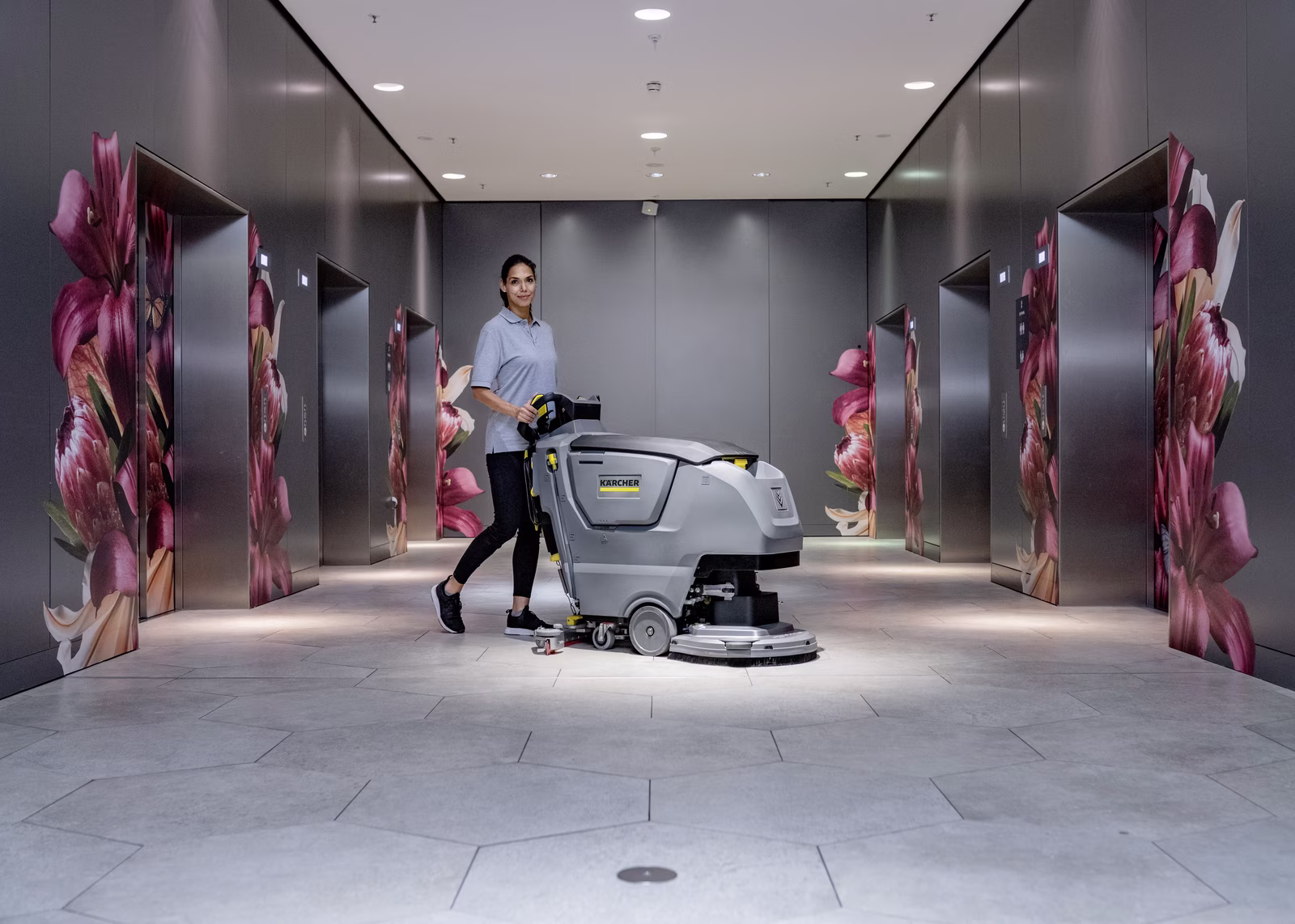

Extremely compact machine

Good overview and excellent manoeuvrability. Easy handling, safe and robust to prevent damage.

1533220 det 05502x502

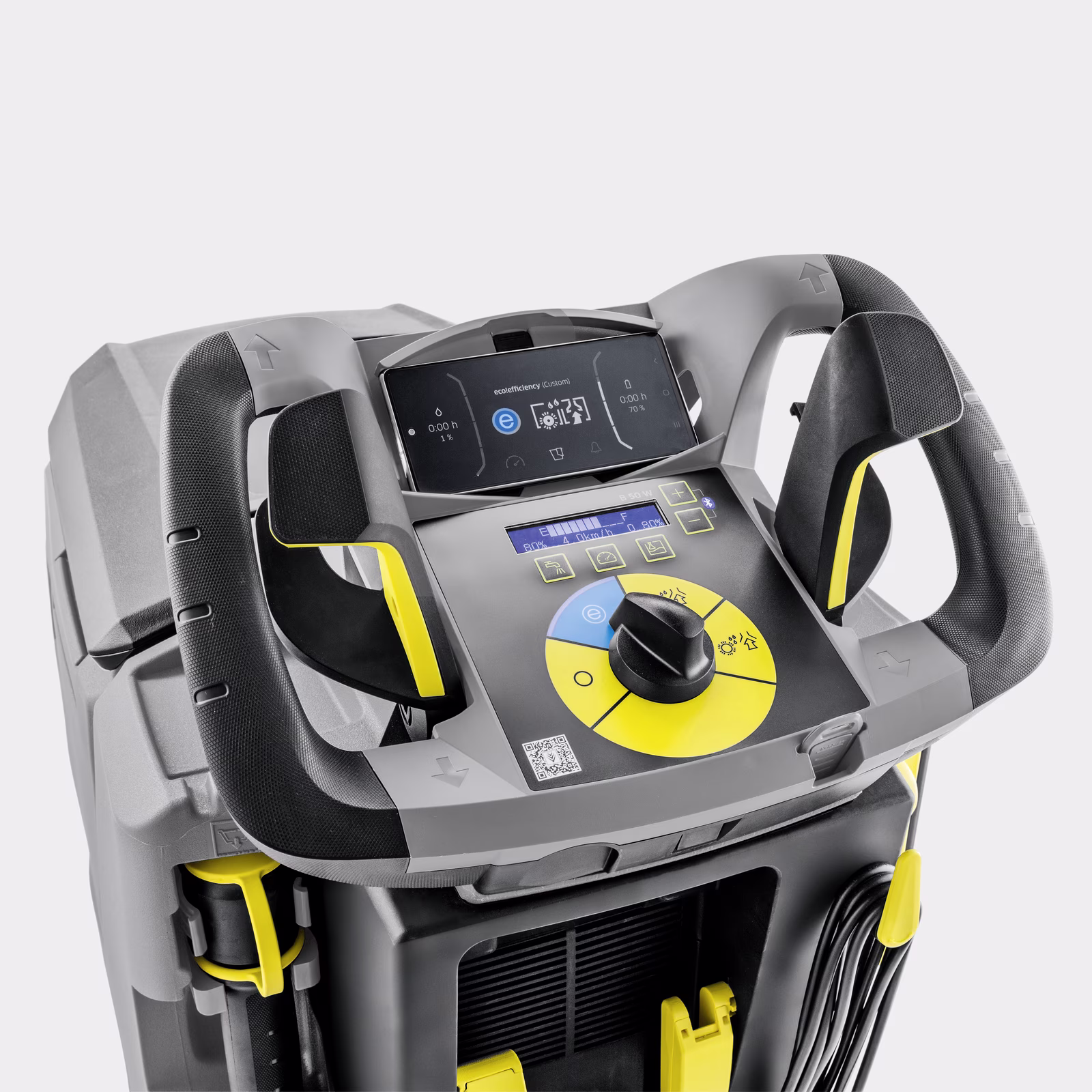

Connectivity/"Machine connect" smartphone app

Expanded range of functions and information. Resource monitoring, increase in productivity, informative animations for maintenance and troubleshooting. Adjustment of parameters, editing of KIK authorisations.

1533220 det 09502x502

Brush head and squeegee made from cast aluminium

Robust and hard-wearing components. Fewer machine downtimes and higher productivity at lower costs.

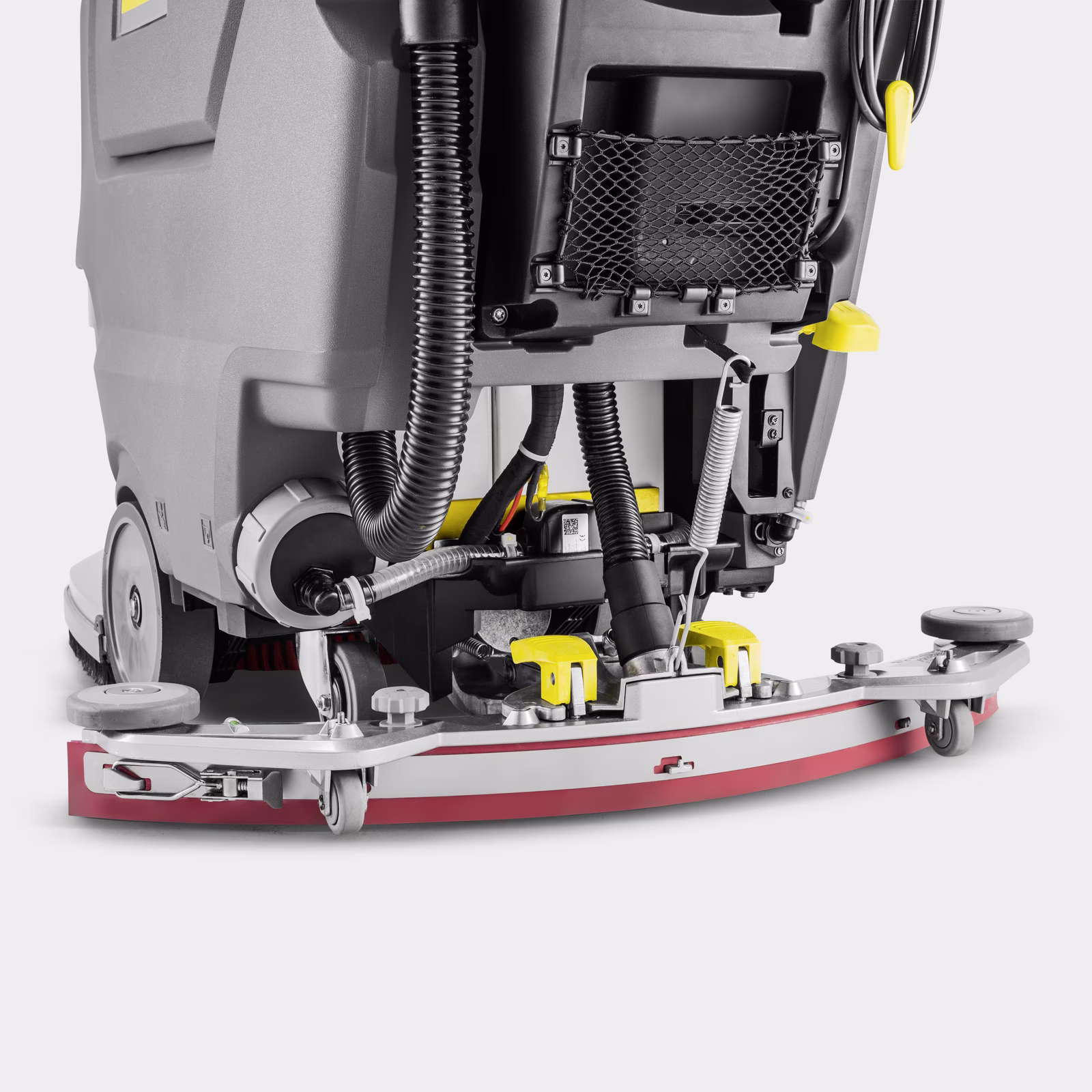

Parabolic squeegee with Linatex suction lips

Perfect suction, even on structured surfaces and in tight bends. Reduced risk of slipping and less manual rework.

D 51 single-disc brush head

Quiet and energy-efficient. Cleaning during business hours with long battery runtime.

Eco!Flow system

Enables speed-dependent water dosing. Consistently good cleaning results, even in bends.

New, integrated "DOSE" cleaning agent dosing system

Exact cleaning agent dosing. Consistently good cleaning results and efficient cost savings. Contact-free change of cleaning agents thanks to closed-loop system.

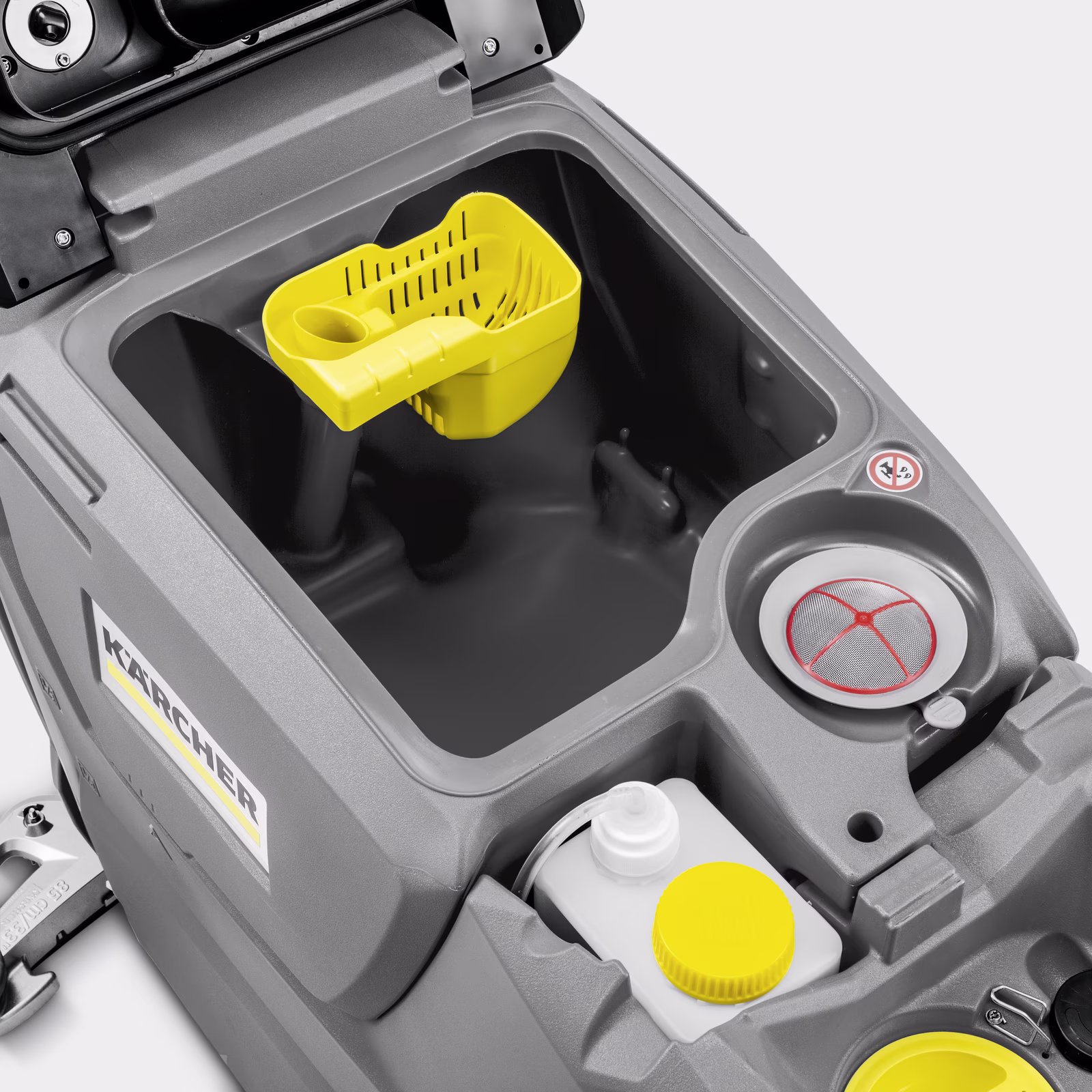

Auto-rinse tank rinsing system

Contact-free cleaning of the dirty water tank. No splashing.

Auto-fill fresh-water filling system

Quick and easy filling of the fresh water tank. Time savings during the cleaning process, no overflowing thanks to automatic stop.

Application areas

  • Perfect for building cleaning, in the retail sector or in public buildings
  • Suitable for cleaning floors in canteens, schools and hospitals
  • For maintenance and intermediate cleaning, e.g. in public buildings

Specifications

Drive type

Battery

Traction drive

traction motor

Working width, brushes (mm)

510

Working width, vacuuming (mm)

850

Fresh/dirty water tank (l)

50 50

Theoretical area performance (m²/h)

3060

Practical area performance (m²/h)

1840

Battery type

Maintenance-free

Battery (V / Ah)

24 / 115

Battery run time (h)

3

Battery charging time (h)

10

Voltage (power supply for battery charger) (V)

100 - 240

Frequency (power supply for battery charger) (Hz)

50 - 60

Driving speed (km/h)

max. 6

Brush rotational speed (rpm)

140

Brush contact pressure (kg / g/cm²)

29 / 32

aisle turning width (mm)

1400

Water consumption (l/min)

2.5

Sound pressure level (dB(A))

65

Permissible total weight (kg)

245

Weight without accessories (kg)

185

Dimensions (L × W × H) (mm)

1367 x 609 x 1082

Scope of supply

  • Disc brush: 1 Piece(s)
  • Battery
  • Battery charger
  • Squeegee, curved
  • robust aluminium die-cast suction bar
  • dosing canister for detergent with closed loop system

Equipment

  • DOSE
  • Powerful traction drive
  • 2-tank system
  • Patented tank rinsing system
  • Fresh water level indicator: Via water pressure
  • operation using app
  • Auto Fill
  • small detergent dosing unit up to 0.25%
  • Type of suction lips: Linatex®
  • with speed-dependent water dosing
  • Kärcher colour and operating concept
  • Kärcher Intelligent Key System (KIK) with over 30 user languages and individual user rights
  • Home Base fastening possibilities for mop or similar
  • Easy Operation selector switch

Made in Europe

picto ecoflow CMYK oth 01 EN CI20

picto automatic dosing CMYK oth 01 EN CI20

picto autorinse CMYK oth 01 EN CI20

picto kik CMYK oth 01 EN CI20

picto autofill CMYK oth 01 EN CI20

picto easy operation oth 1 EN CI15 110454 CMYK

picto easy handling CMYK oth 01 EN CI20
