  • 75 l tanks for fresh/dirty water, 70 cm disc brush, traction drive
  • Off-board charger + 170 Ah AGM battery, 3 h run time, max. 3525 m²/h
  • Brush head and squeegee made from robust aluminium

Compare

Features and benefits

Despite its large 75-litre tank volume, our battery powered BD 70/75 W Bp Pack Classic push scrubber drier is surprisingly compact and manoeuvrable. This makes the versatile, robust machine suitable for a huge variety of cleaning applications. The integrated, maintenance-free 170 Ah AGM battery also means you can easily clean for longer. It is extremely easy to use and maintain, and boasts high-quality equipment features such as the dual-disk brush head, the aluminium squeegee, and many other useful features.

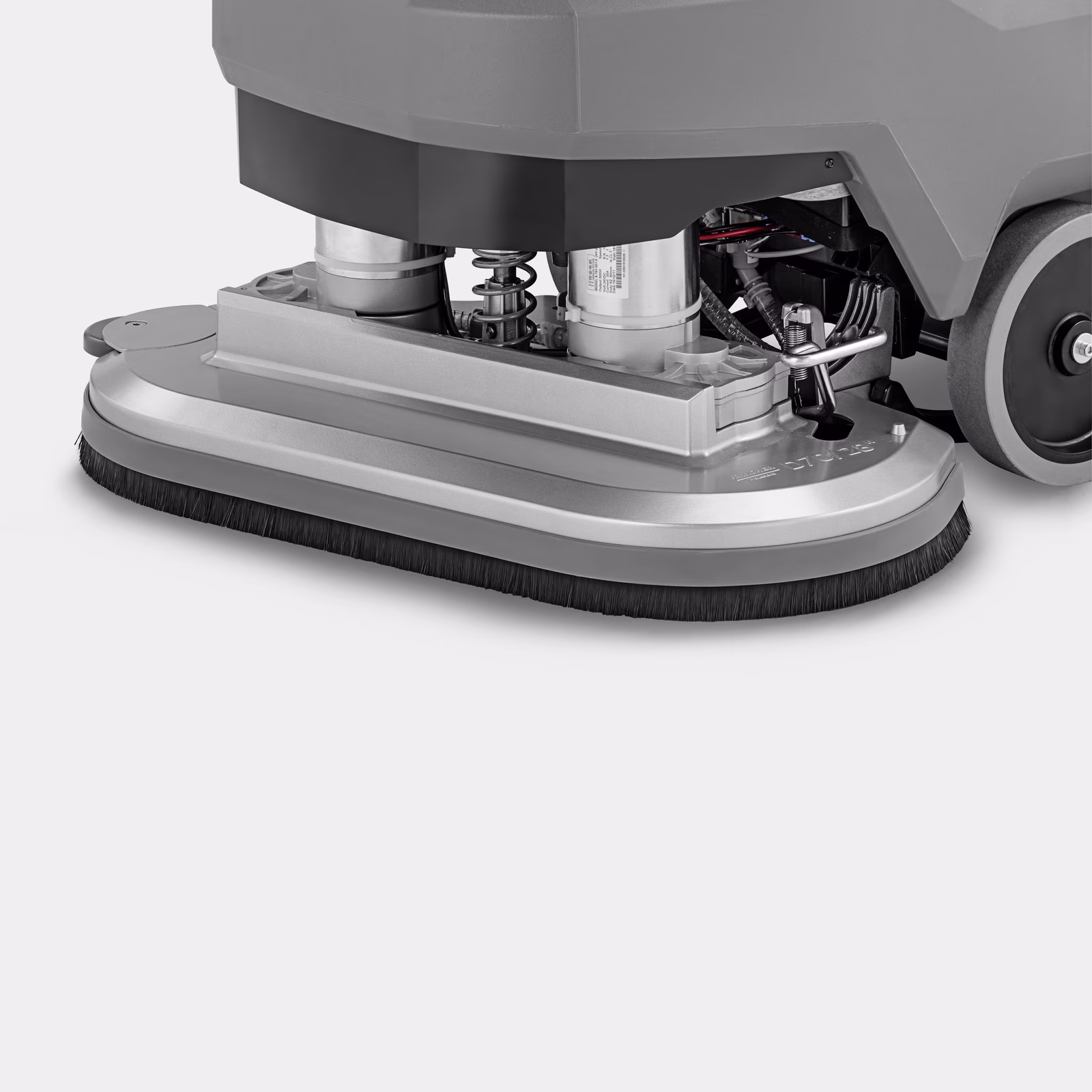

The brush head and squeegee are made from long-lasting aluminium

Robust machine concept for tough working conditions with low failure rates. Also developed for applications in harsh conditions.

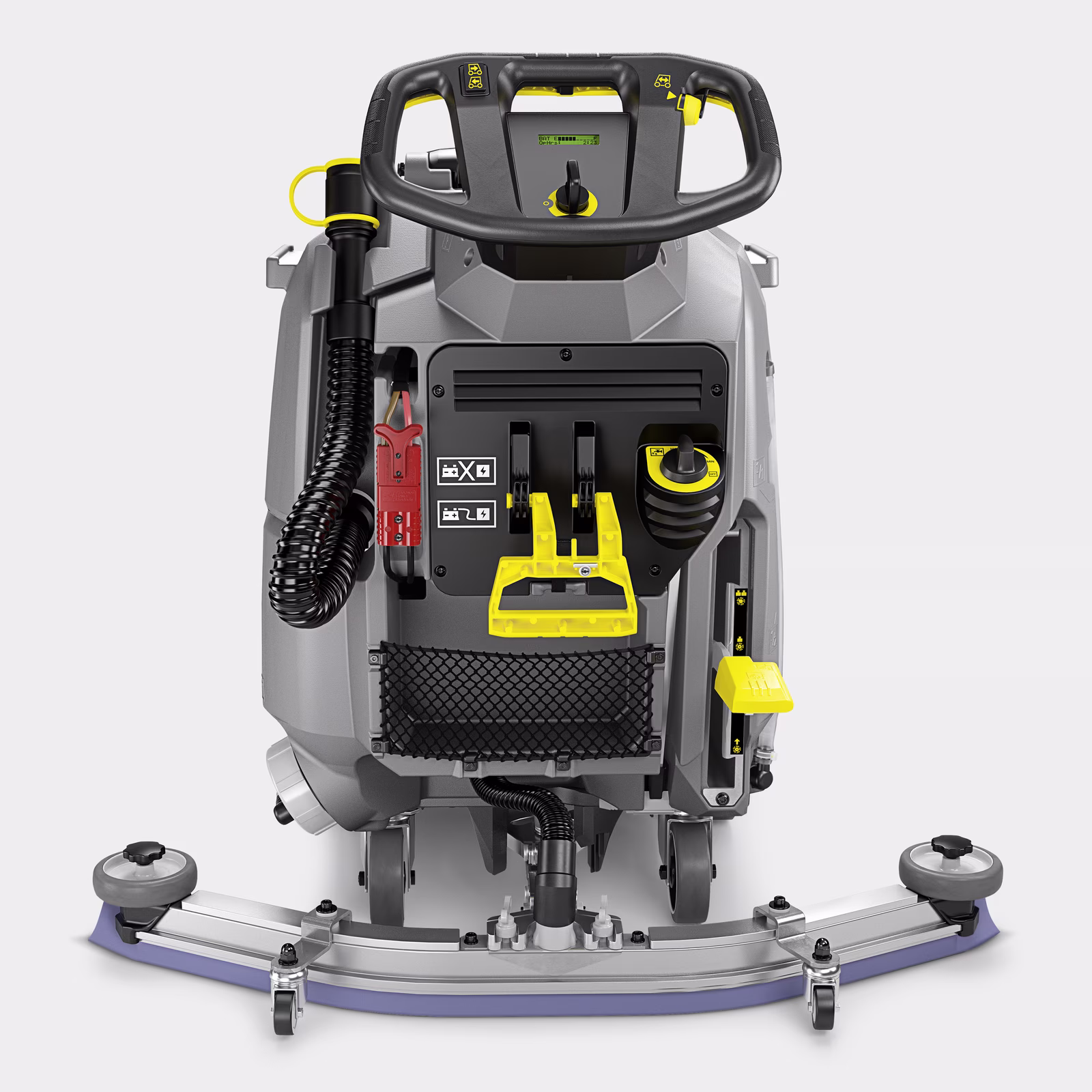

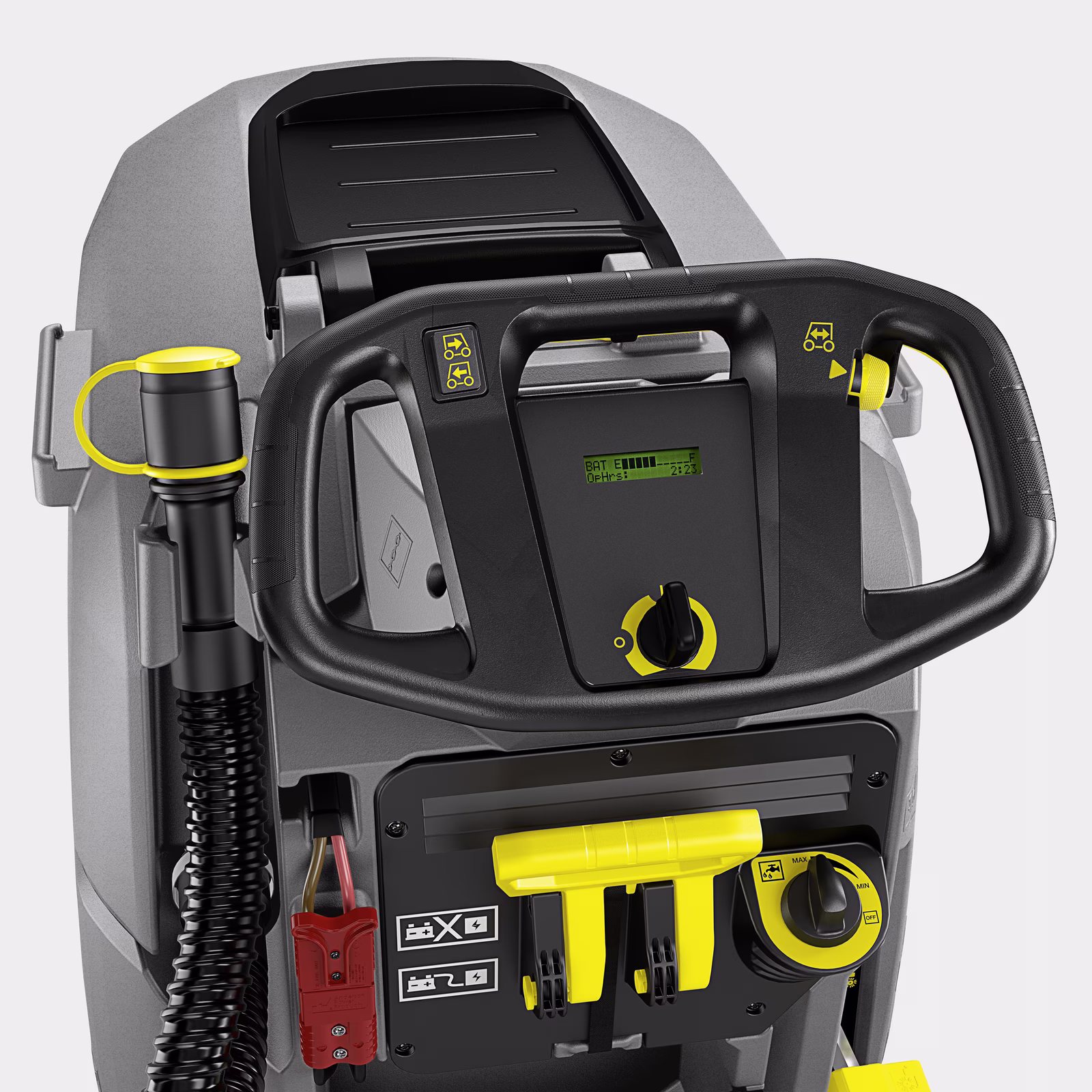

Extremely simple operating concept

All machine functions can be operated using switches, buttons and knobs. Colour-coded controls for easy operation and short teach-in times.

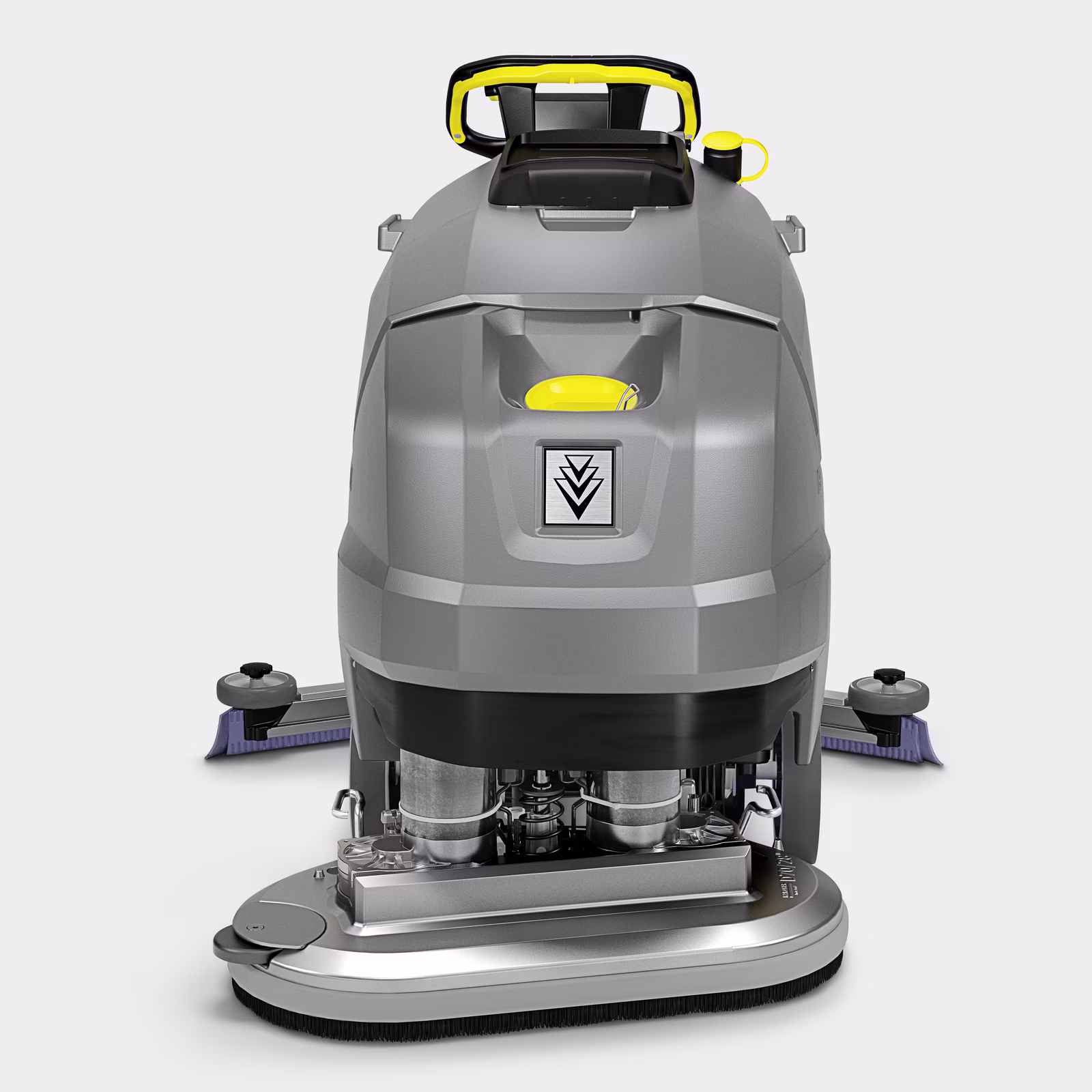

Compact and robust design

Highly versatile, easy to manoeuvre machine that provides a good overview. Reduces the risk of damaging the machine or equipment.

Brush contact pressure can be adjusted as needed

Contact pressure can be increased from 30 to 50 kg as needed. Lower contact pressure when there is only a little dirt or if the floor is delicate. High contact pressure for stubborn dirt or coating removal.

Maintenance-free 170 Ah AGM battery and external battery charger included as standard

Straightforward battery technology for use in a wide range of situations. Enables long work activities. Increases efficiency and productivity.

Application areas

  • Ideal for cleaning retail stores, shopping centres and hardware stores
  • Ideal for cleaning airports, in industry and in the transport industry
  • Ideal for building service contractors, e.g. in sports halls

Specifications

Drive type

Battery

Traction drive

traction motor

Working width, brushes (mm)

705

Working width, vacuuming (mm)

1030

Fresh/dirty water tank (l)

75 75

Theoretical area performance (m²/h)

3525

Practical area performance (m²/h)

2115

Battery type

Maintenance-free

Battery (V / Ah)

24 / 170

Battery run time (h)

3

Voltage (power supply for battery charger) (V)

220 - 240

Frequency (power supply for battery charger) (Hz)

50 - 60

Driving speed (km/h)

max. 5

Brush rotational speed (rpm)

180

Brush contact pressure (g/cm² / kg)

20.4 - 34 / 30 - 50

aisle turning width (mm)

1550

Water consumption (l/min)

2.75

Sound pressure level (dB(A))

63 - 65

Rated input power (W)

1850

Permissible total weight (kg)

325

Weight without accessories (kg)

100

Dimensions (L × W × H) (mm)

1445 x 750 x 1065

Scope of supply

  • Disc brush: 2 Piece(s)
  • Battery
  • Battery and charger included
  • Squeegee, angled

Equipment

  • Powerful traction drive
  • 2-tank system
