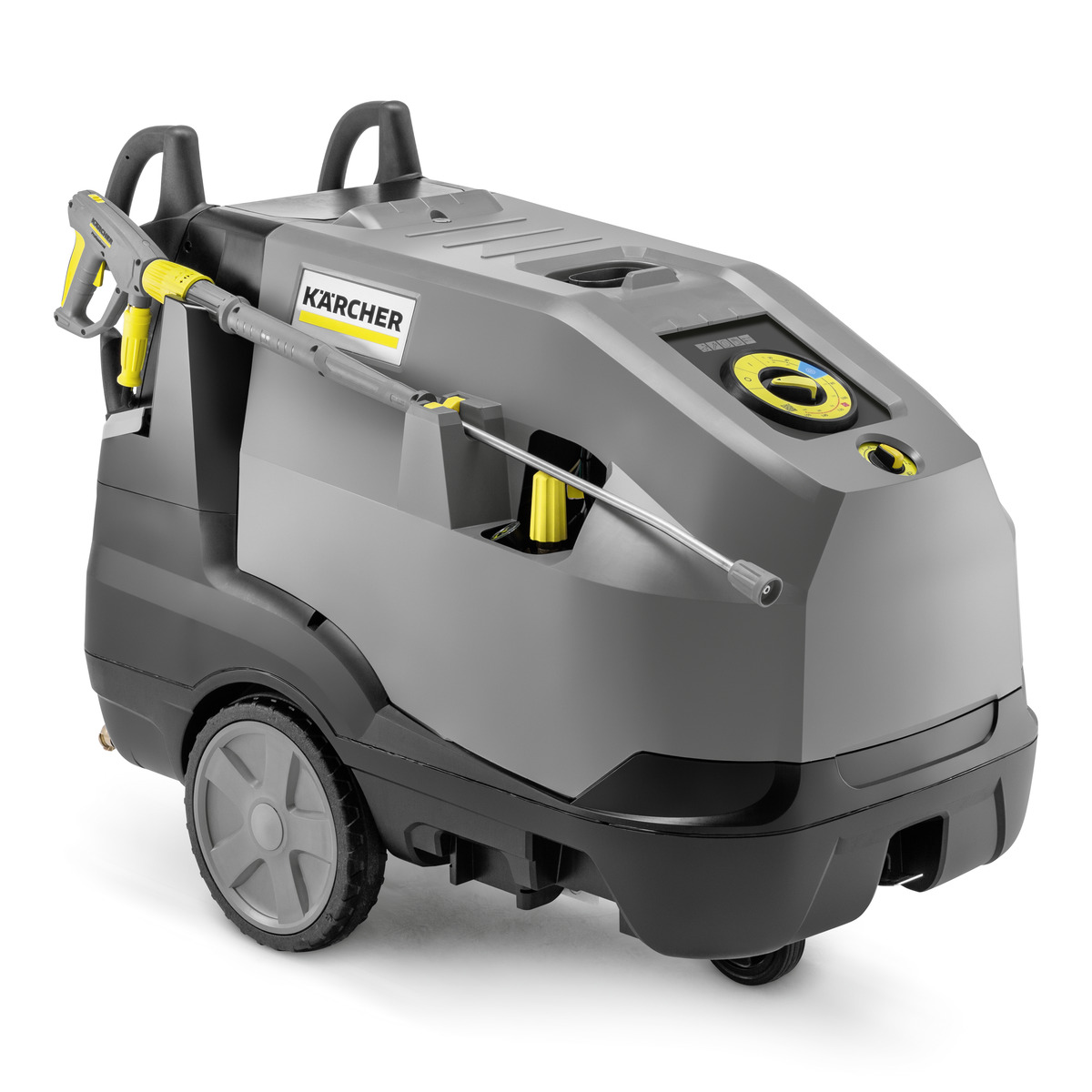

Introducing the new Karcher HDS 10/21-4 M! Our 420v HDS middle class hot water high-pressure cleaners set the bar high in terms of performance, reliability, and economy.
1-3 WORKING DAYS DELIVERY ON ALL ORDERS
*NEXT DAY DELIVERY AVAILABLE
£4678.80 (inc VAT)
£3,899.00 (excl VAT)
Part number: K1071939
► Delivery in 1-3 working days
Do you need help? Call 01403 273 444
Equipped with cutting-edge features like the eco!efficiency mode, which can save up to 20% on fuel without compromising cleaning power, 4-pole motors ensuring high performance and durability, onboard diagnostics, and a generous 3-year burner coil warranty, the HDS middle class range meets the demands of our customers for toughness, cleaning prowess, and low operating costs. The HDS 10/20-4 M boasts a 3-phase 4-pole, water-cooled electric motor with long-life bearings, paired with a 3-piston axial pump featuring ceramic pistons. With a water flow of up to 1000 litres per hour and a pressure of up to 200 bar, the 10/20 stands out as an exceptional all-round machine delivering outstanding performance.
Features and benefits
Water treatment unit
- In eco!efficiency mode, the machine operates in the most economical temperature range (60 °C) – with full water flow.
- The burner cycles are optimised to reduce fuel consumption by 20% compared to full load operation.
Wide-ranging accessories with EASY!Lock
- EASY!Force Advanced for fatigue-free work without any holding force.
- Pressure and water volume can be adjusted on the Servo Control controller positioned between the lance and trigger gun.
- Rotating 1050 mm stainless steel lance.

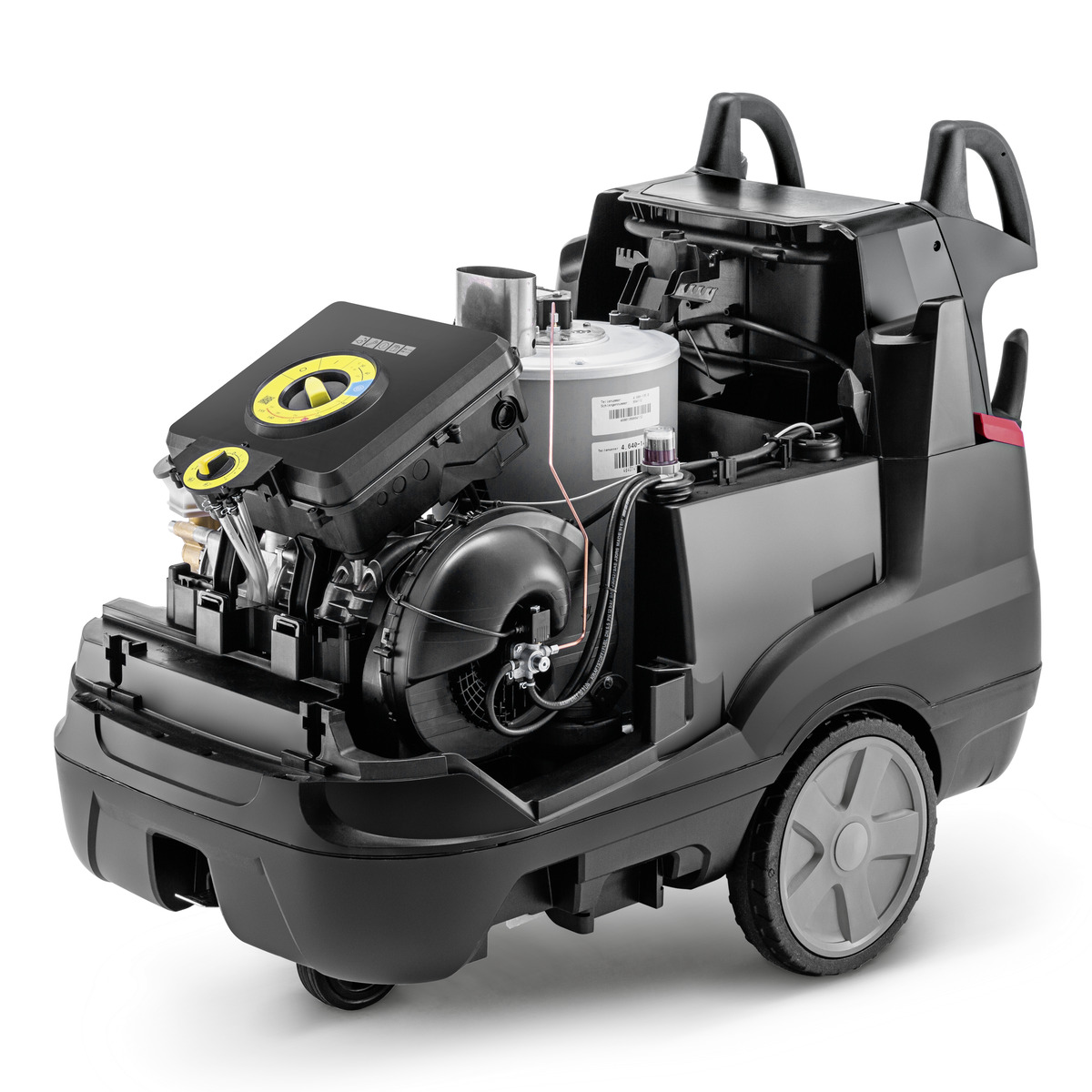

Maximum efficiency
- Highly efficient, tried-and-tested "Made in Germany" burner technology.
- 4-pole electric motor with 3-piston axial pump.
- Water-cooled motor for a high level of performance and durability.
Operational reliability
- Safety valve, water shortage and fuel safeguard guarantee the operational safety of the device.

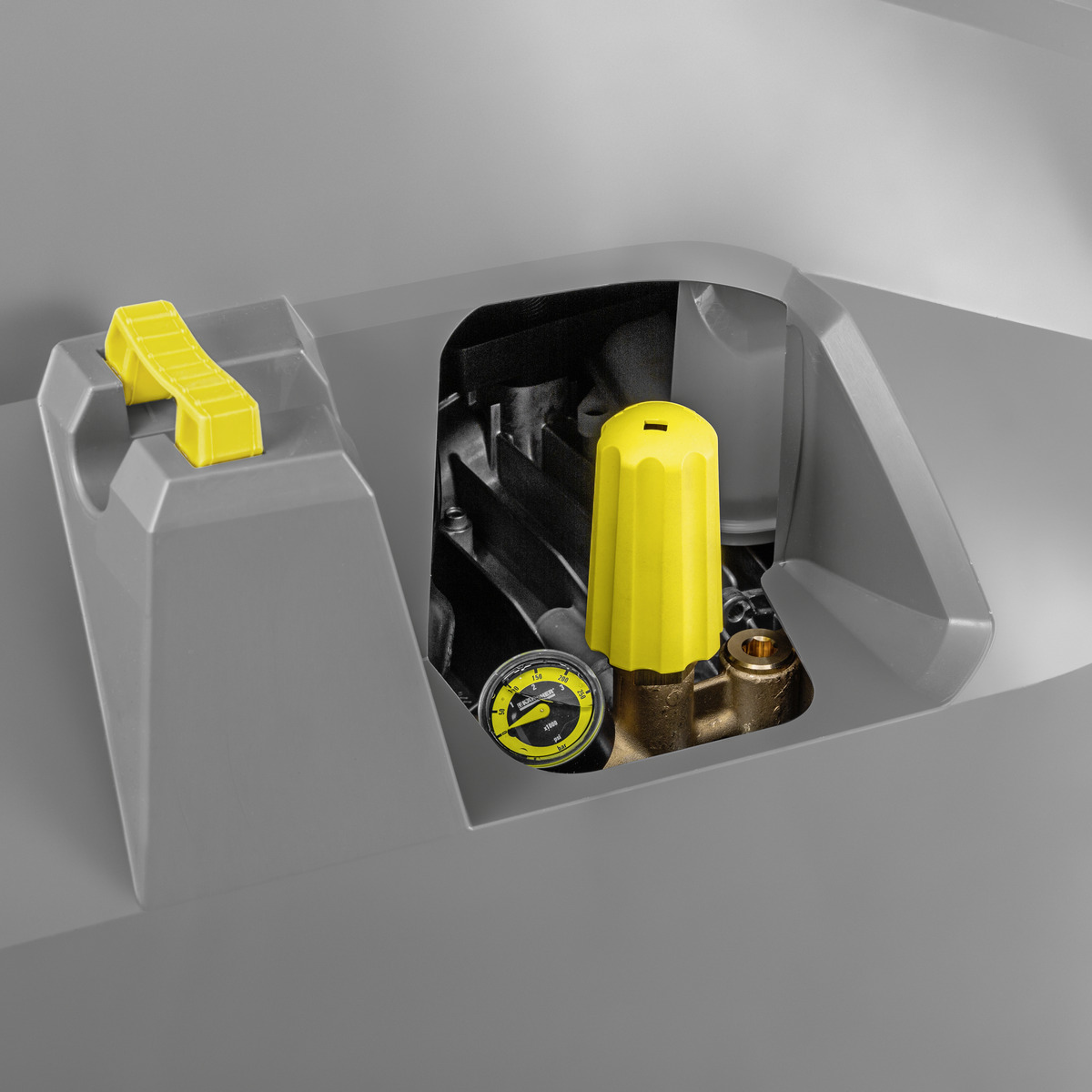

- The soft damping system (SDS) compensates for vibrations and pressure surges in the high-pressure system.

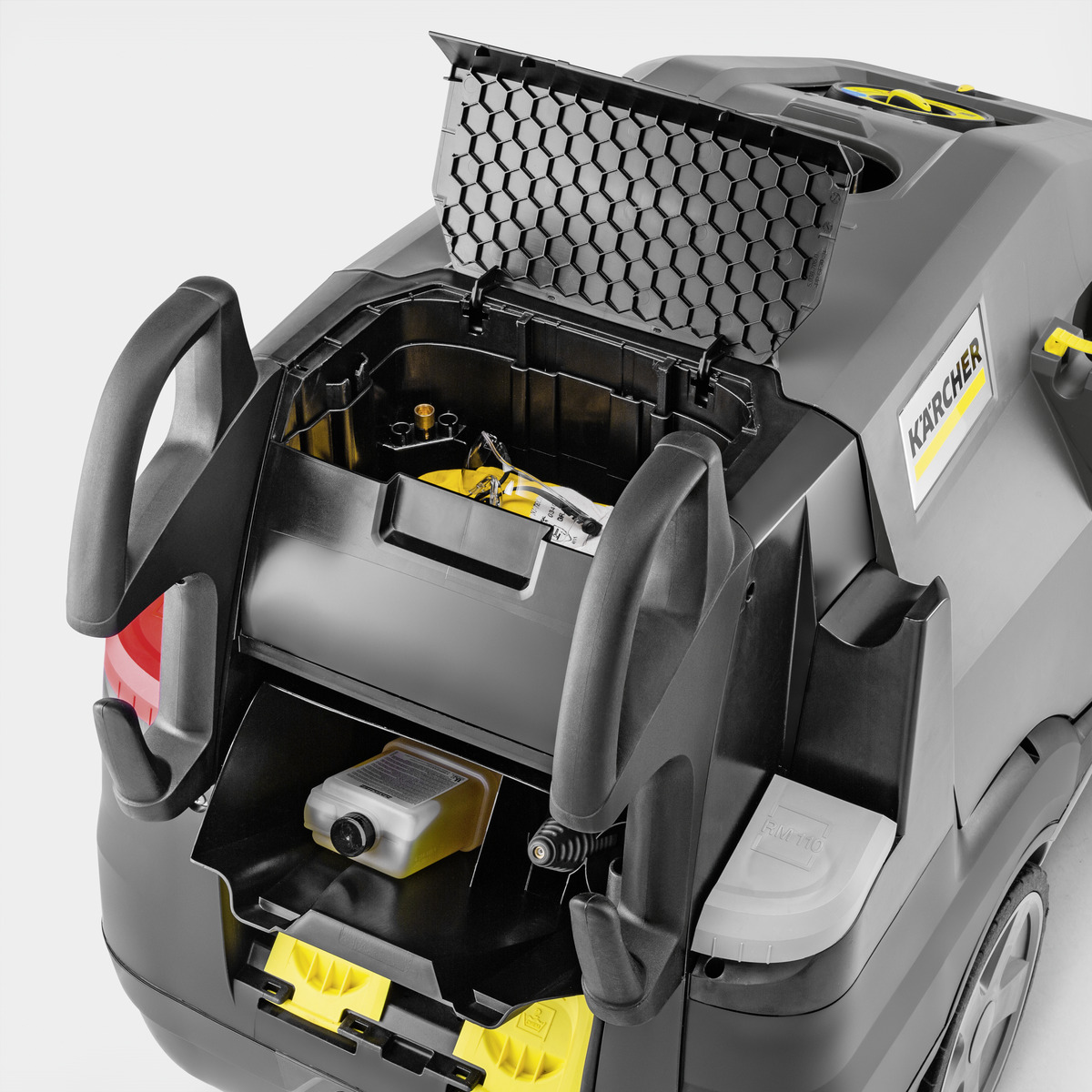

Multiple storage spaces for accessories integrated into the machine
- On-board practical storage for accessories. Includes two hooks for suction hose and power cord.
- Spacious storage compartment, e.g. for detergents, gloves or tools.
Detergent application
- Easy to switch between detergent tank 1 and 2.
- Precise detergent dosing unit with rinse function.

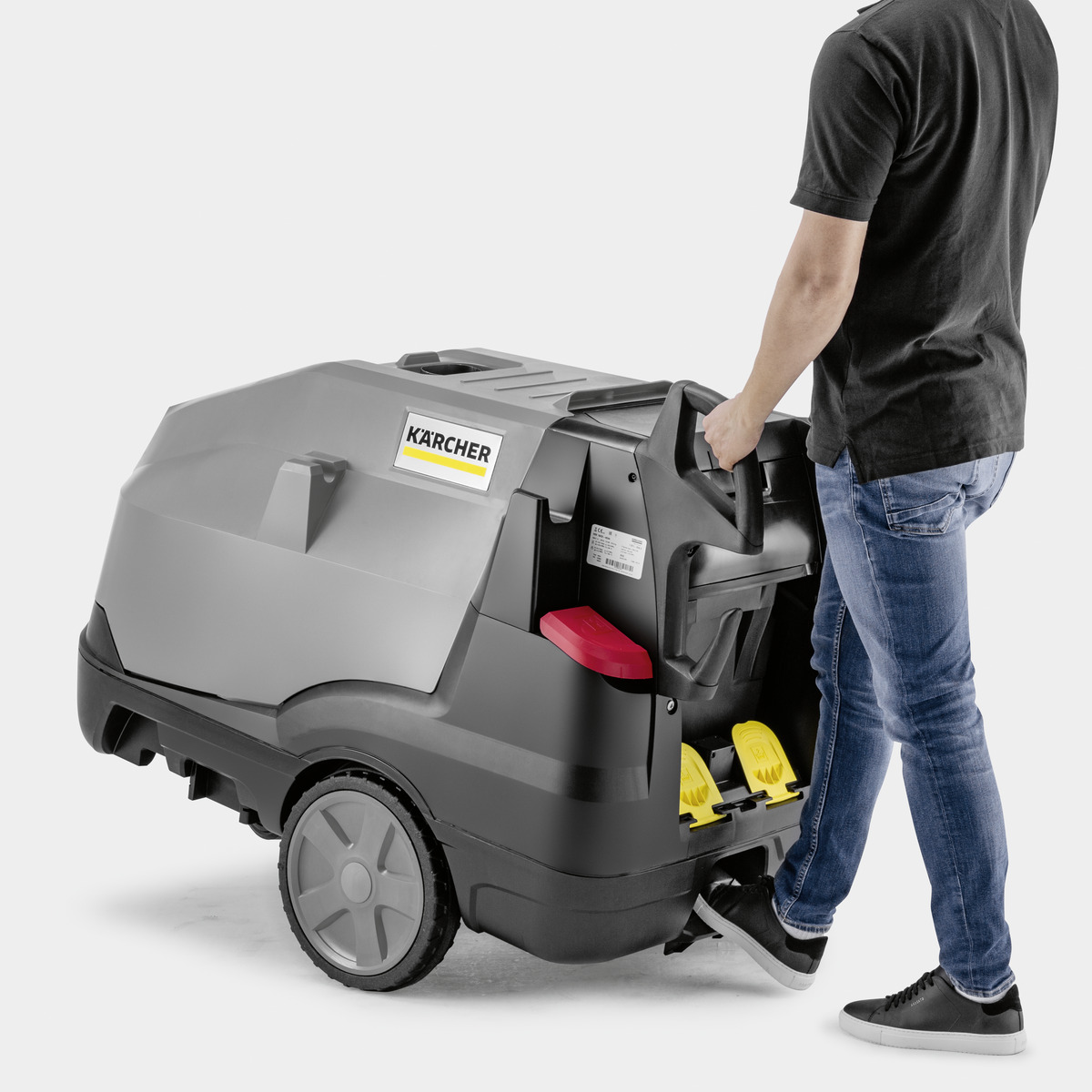

Mobility concept
- "Jogger" design with large rubber wheels and steering roller.
- Integrated tipping trough for effortless transport over ledges.
- Push handles for simple transport and manoeuvrability.

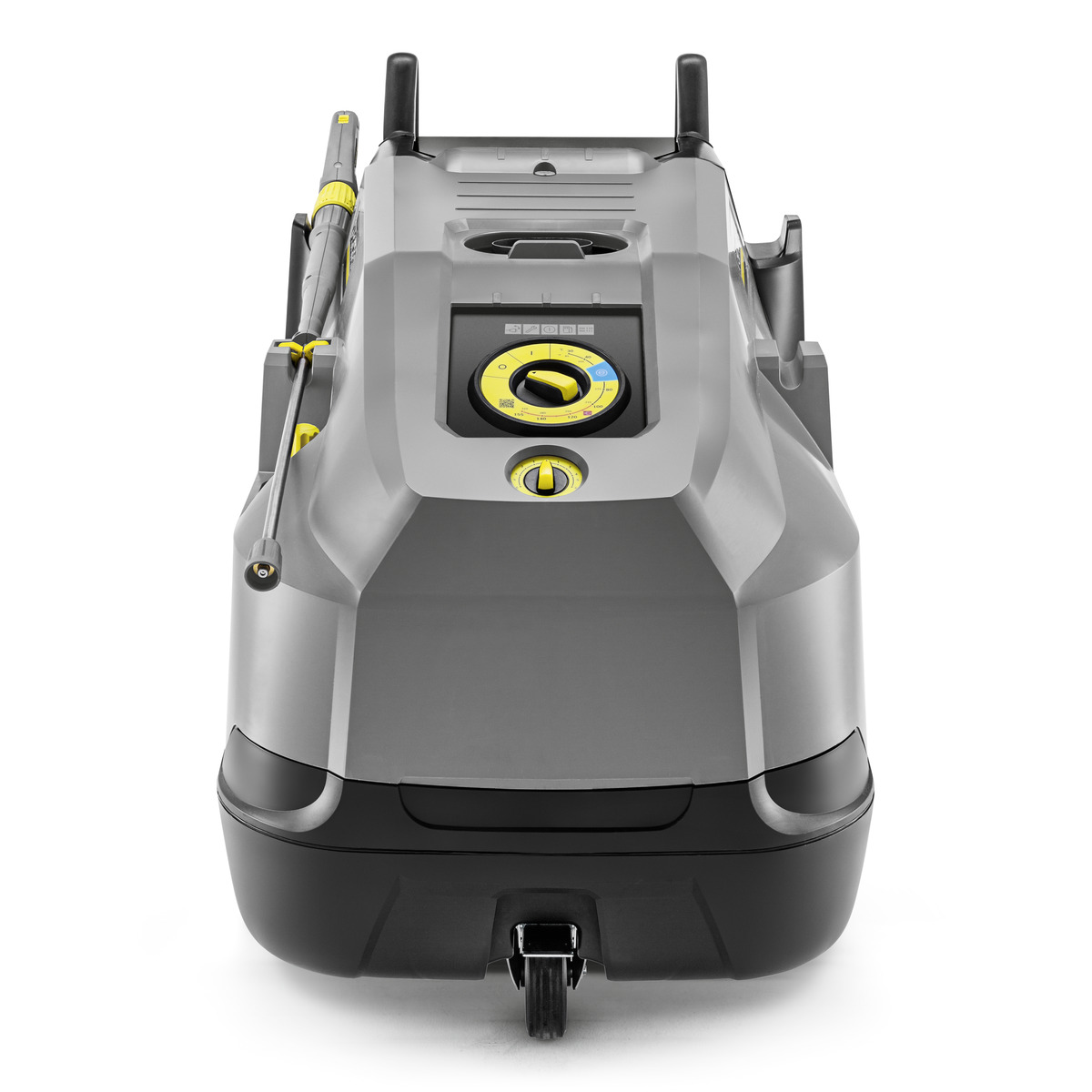

Easy to use controls

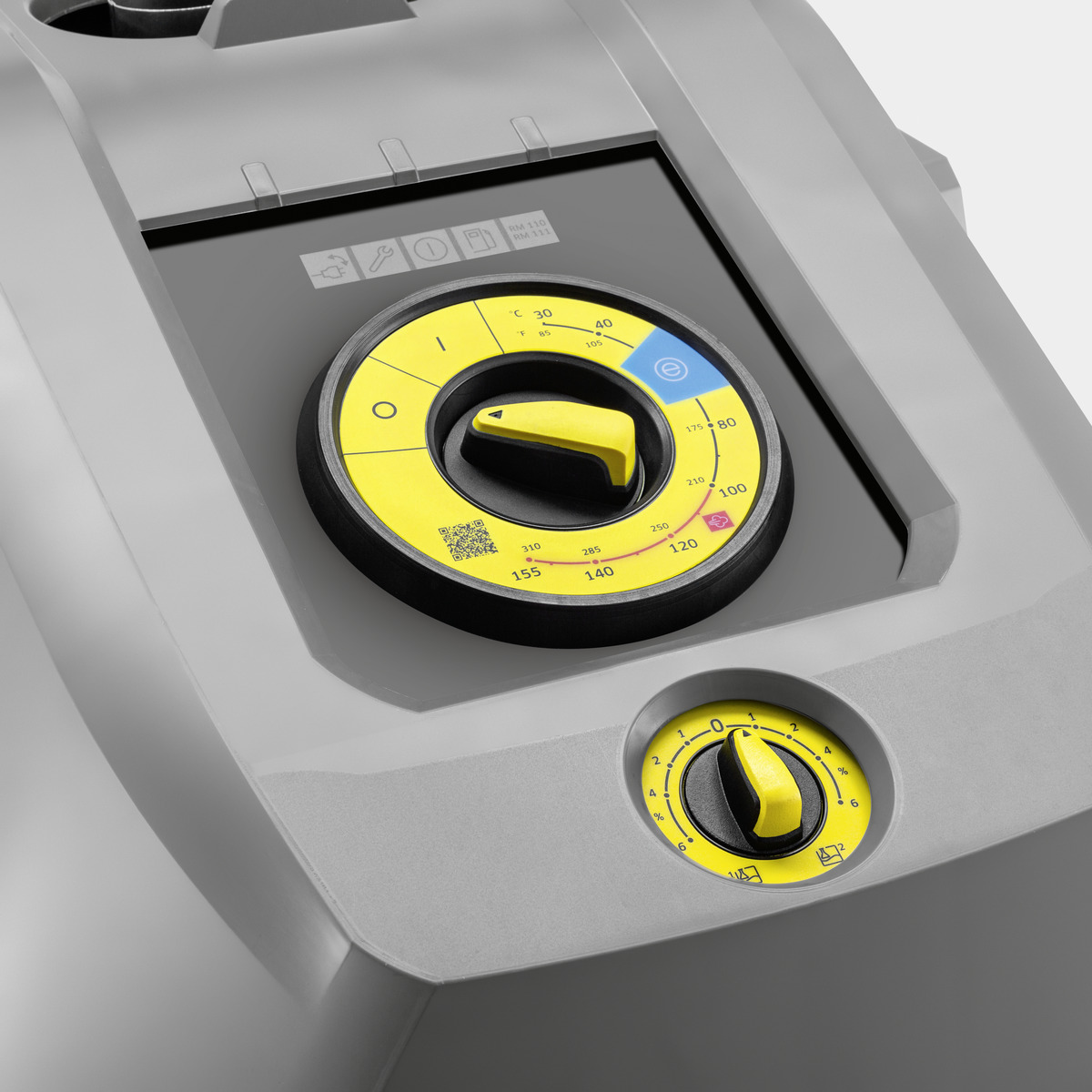

- One switch for all unit functions.
Specifications
Technical data
| Current type (Ph/V/Hz) | 3 / 400 / 50 |
| Flow Rate (l/h) | 500 - 1000 |
| Operating pressure (bar/MPa) | 30 - 210 / 3 - 21 |
| Temperature (supply 12°C) (°C) | min. 80 - max. 155 |
| Power rating (kW) | 7.8 |
| Consumption fuel oil (kg/h) | 6.4 |
| Heating oil consumption, eco!efficiency (kg/h) | 5.1 |
| Power cable (m) | 5 |
| Fuel tank (l) | 25 |
| Weight (with accessories) (kg) | 160.2 |
| Weight incl. packaging (kg) | 170.1 |
| Dimensions (L × W × H) (mm) | 1330 x 750 x 1060 |
Scope of supply
- Trigger gun: EASY!Force Advanced
- High-pressure hose: 10 m, Longlife, DN 8,400 bar
- Spray lance: 1050 mm
- Power nozzle
Equipment
- ANTI!Twist

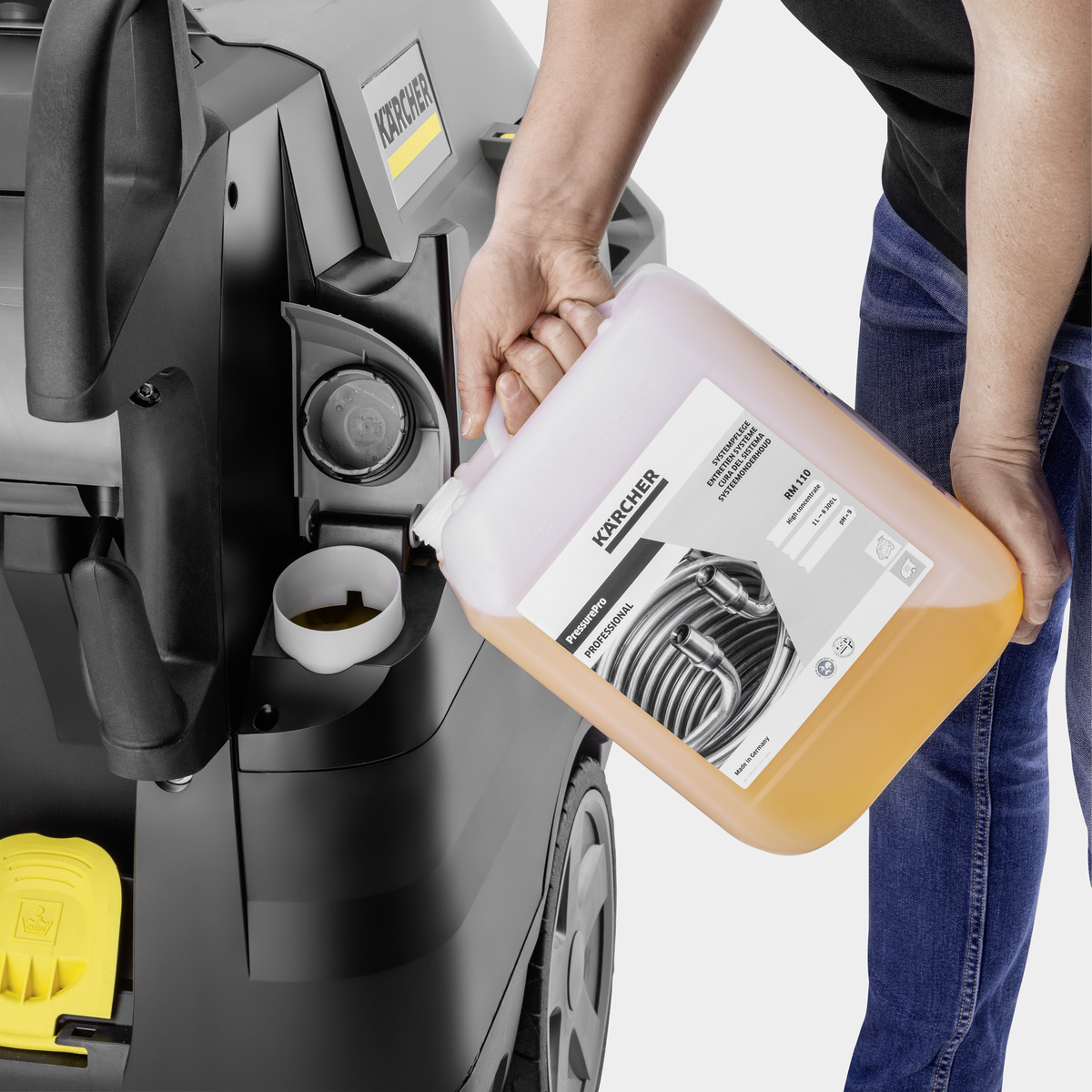

- Tanks for detergent, scale inhibitor and fuel can be filled from outside
- Control panel with indicator lamps
- Pressure switch control
- Pole reversing plug (three-phase)
- Two detergent tanks
- Dry running protection

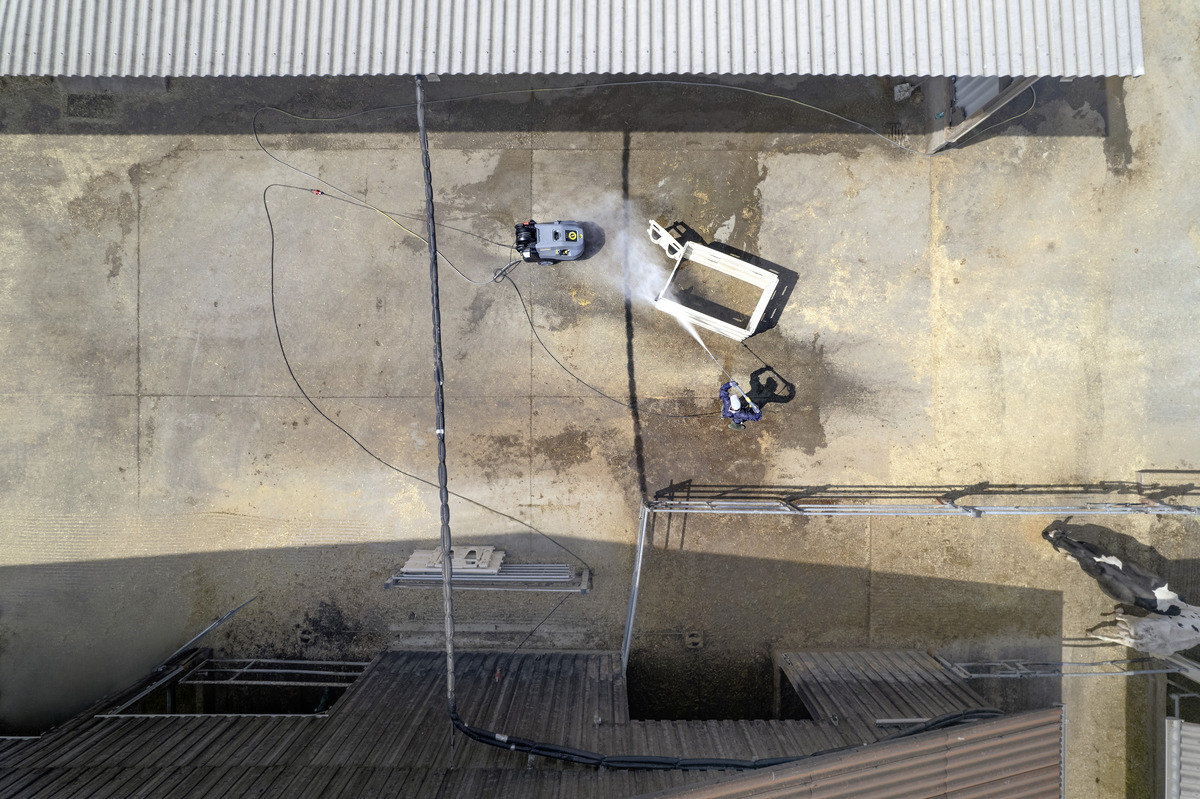

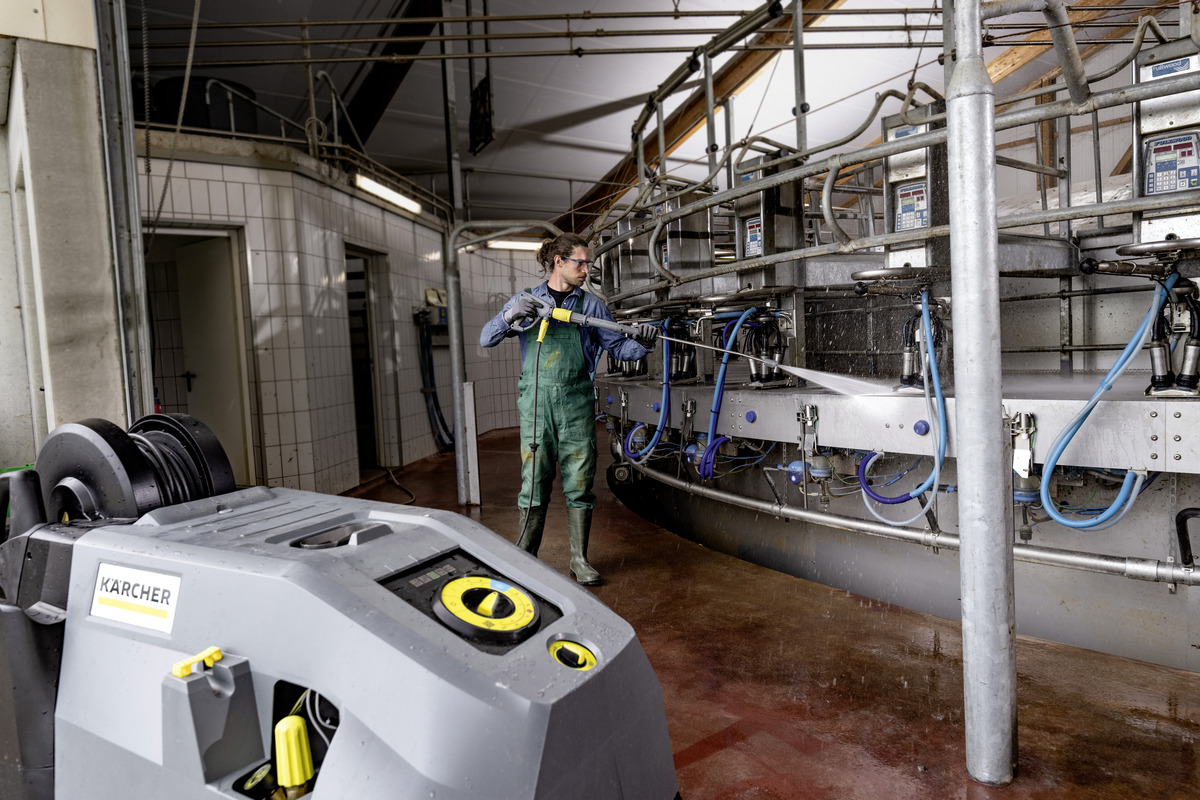

Application Areas

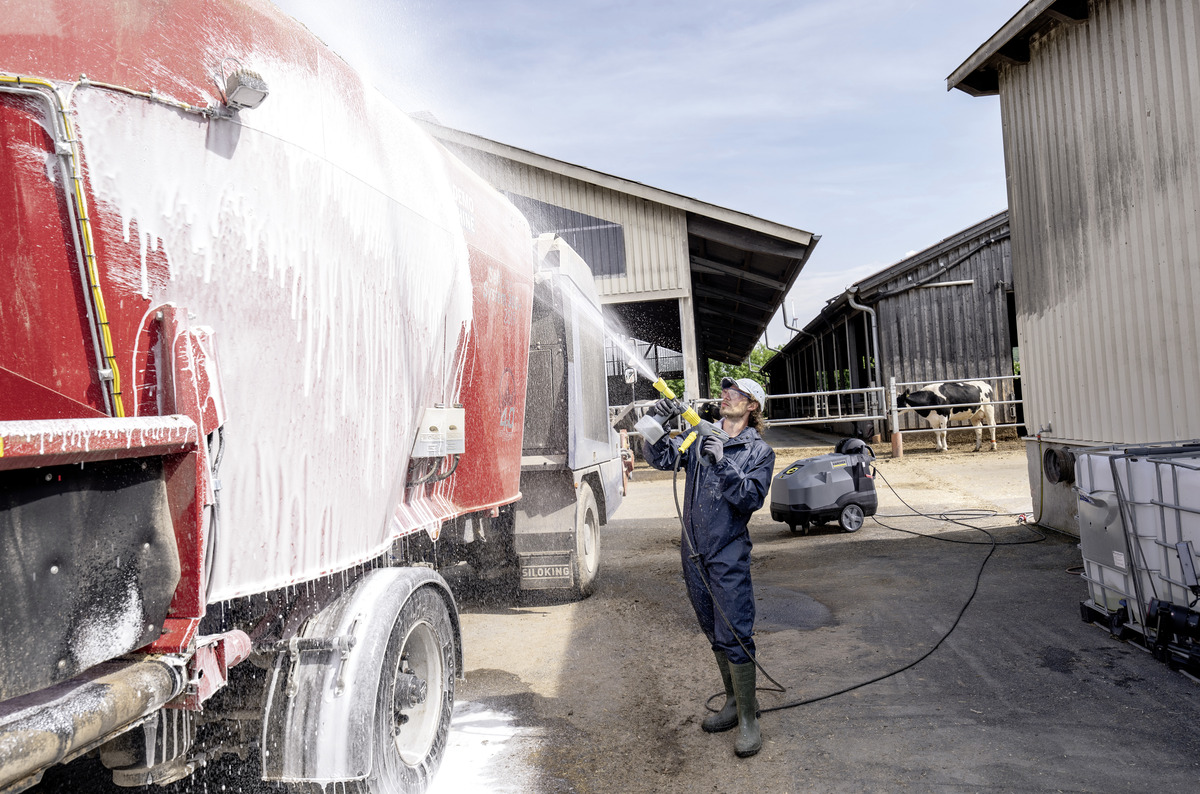

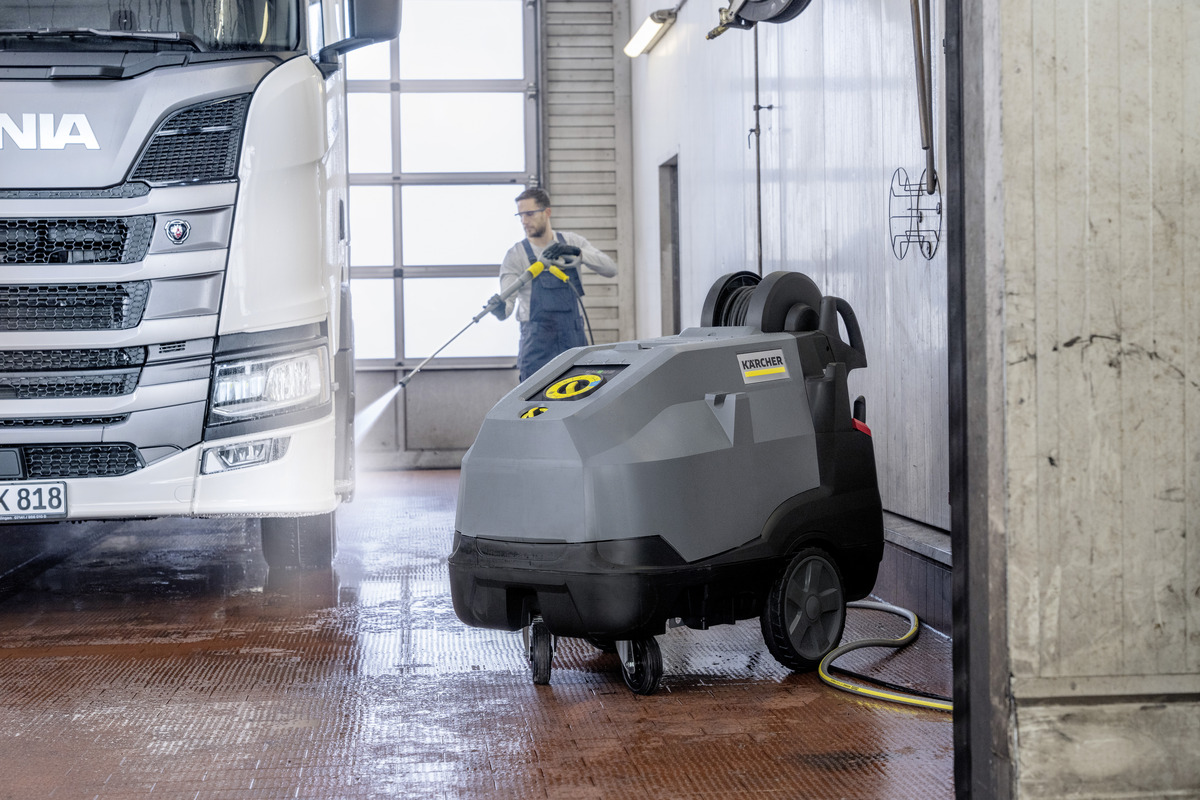

- Vehicle cleaning

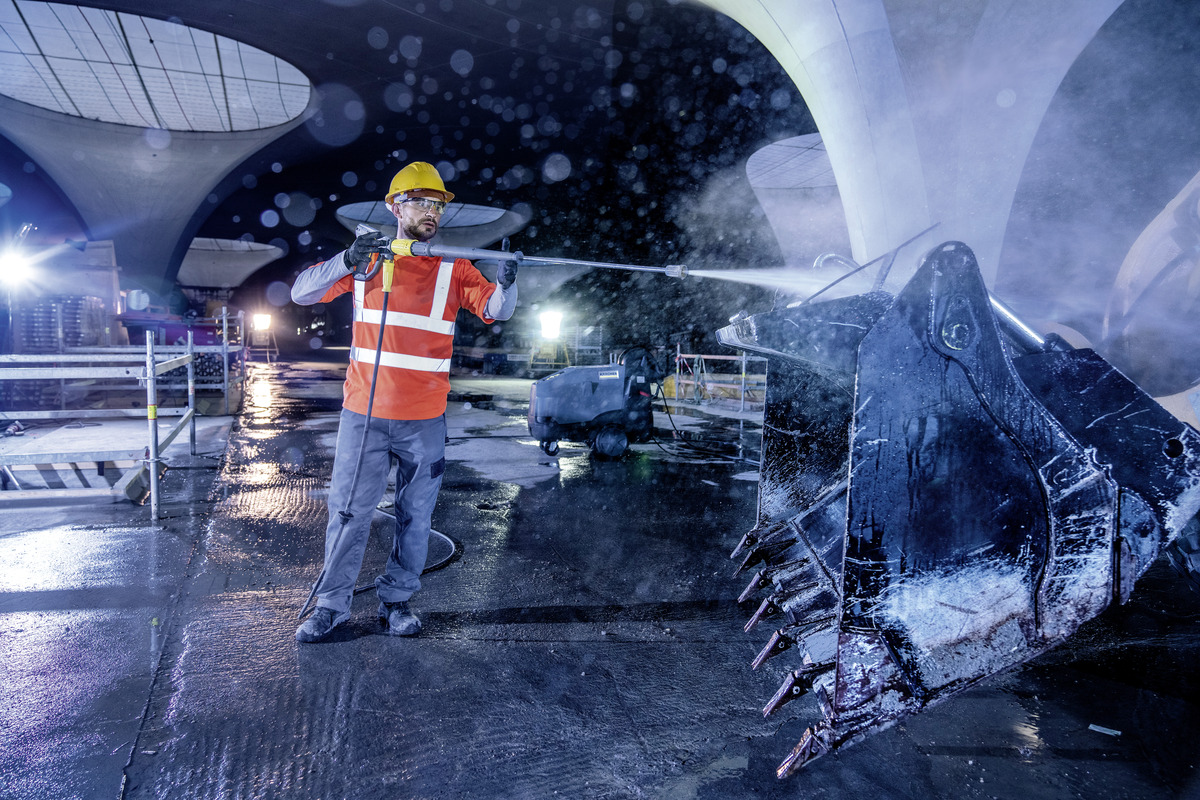

- Device and machine cleaning
- Workshop cleaning
- Cleaning outdoor areas
- Service station cleaning
- Façade cleaning
- Swimming pool cleaning
- Cleaning of sports facilities
- Cleaning during production processes
- Cleaning of production facilities
