  • ACD – Applied for Combustible Dust
  • Stainless steel container, Pull-and-Clean filter cleaning, 4 accessories holders

£3459.98 (inc VAT)

£2,883.32 (excl VAT)

Part number: K9991150

Compare

Features and benefits

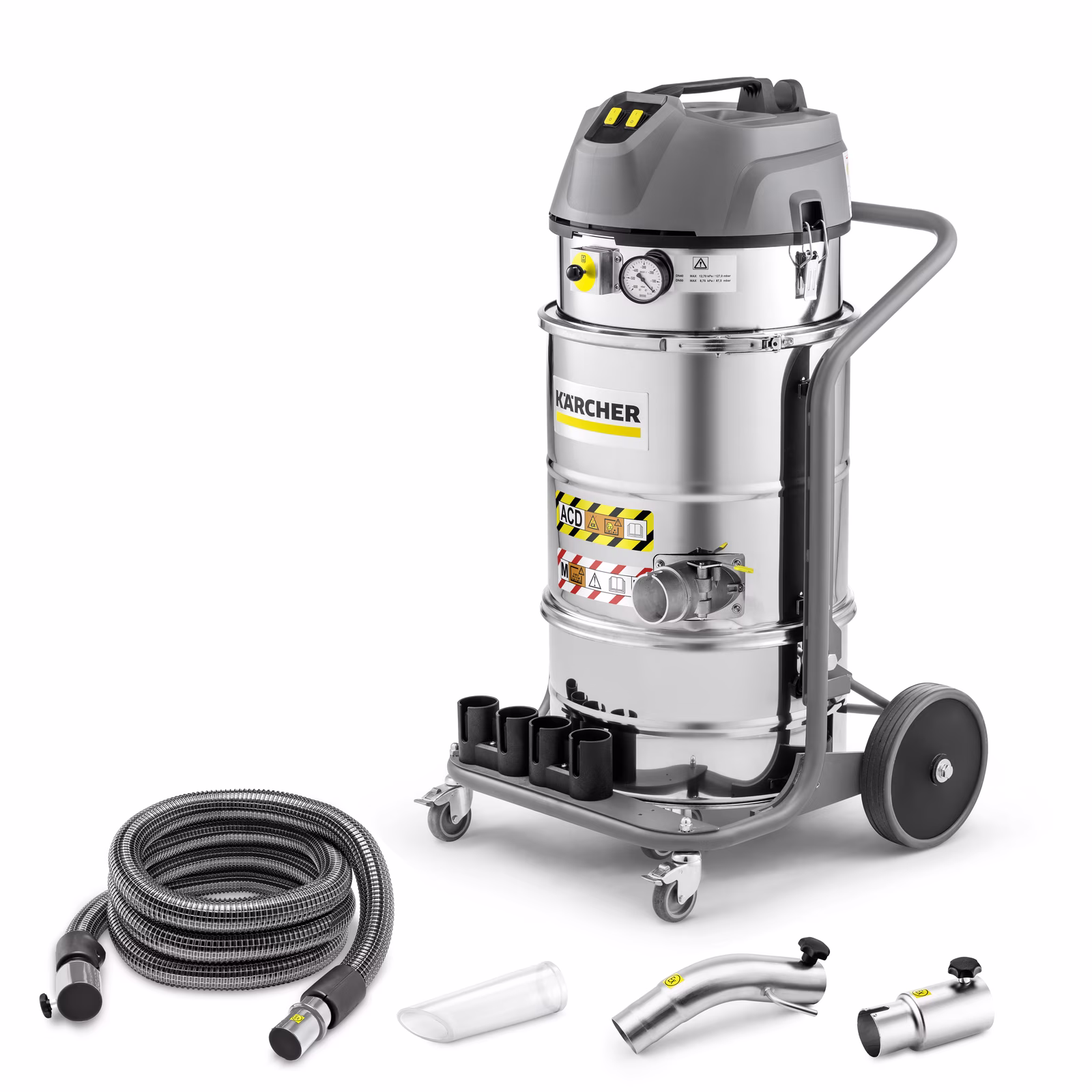

Durable, robust, compact, mobile: our IVM 40/24-2 M ACD Set dual-motor middle-class industrial vacuum cleaner for universal vacuuming of fine and coarse combustible solids outside an ATEX zone. The reliable machine is 110v powered, and both of the motors can be individually controlled. The large, certified PTFE star filter in dust class M can be cleaned easily, conveniently and reliably using the Pull and Clean filter cleaning system without having to switch off the vacuum cleaner. The industrial vacuum's filter and collection tanks are made of acid-resistant stainless steel, while the chassis is made of durable steel and has large wheels for easy transport.

d4cfa612 b8ea 4101 9aaf dc543e893a9f 1

ACD – Applied for Combustible Dust

For the safe and economical vacuuming of combustible dusts. Conforms to the IEC 60335-2-69 standard.

22d78962 fcb1 4e6a aef4 6a4b9c78cfd4

Dust class M

Complete device certified according to DIN EN 60335-2-69 for dust class M.

3faf7966 b281 4eb8 bf4c 0fd10ff5da32

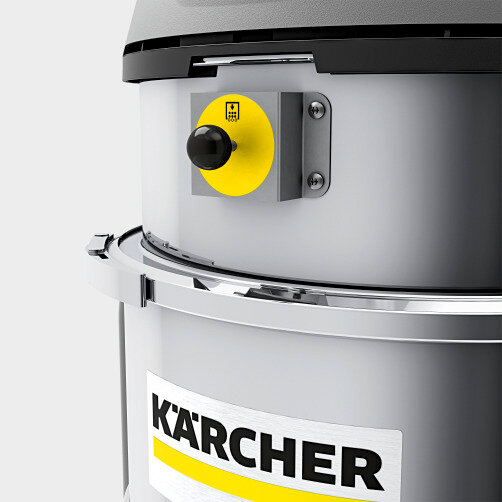

Manual pull-and-clean filter cleaning

Filter is cleaned in a single step during operation. Low-wear dedusting by means of air reversal.

Fitted with two blower motors

For powerful suction power and optimum cleaning performance. Fans can be switched on separately for individual suction power as required.

Equipped with a large star filter

For safely vacuuming solids and dusts up to dust class M. Also suitable for large quantities of dust.

Application areas

  • For picking up combustible types of dust

Specifications

Number of current phases (Ph)

1

Voltage (V)

110 - 127

Frequency (Hz)

50 - 60

Air flow (l/s / m³/h)

2 x 70 / 2 x 252

Vacuum (mbar)

245

Container capacity ( )

40

Container material

Stainless steel

Rated input power (kW)

2.3

Vacuuming type

Electric

Sound pressure level (dB(A))

76

Cable length (m)

7.5

Main filter dust class

M

Filter area for main filter (m²)

1.5

Colour

silver

Weight without accessories (kg)

35.7

Weight incl. packaging (kg)

36.3

Dimensions (L × W × H) (mm)

645 x 655 x 1150

Equipment

  • Main filter: Star filter
  • Accessories included with machine: yes

Made in Germany

Rostfrei Logo 4547 CMYK1 1

picto Dust class M warning CMYK oth 01

picto ACD warning CMYK oth 01

Recommended maximum duration of use in hours/day.
