Features and benefits

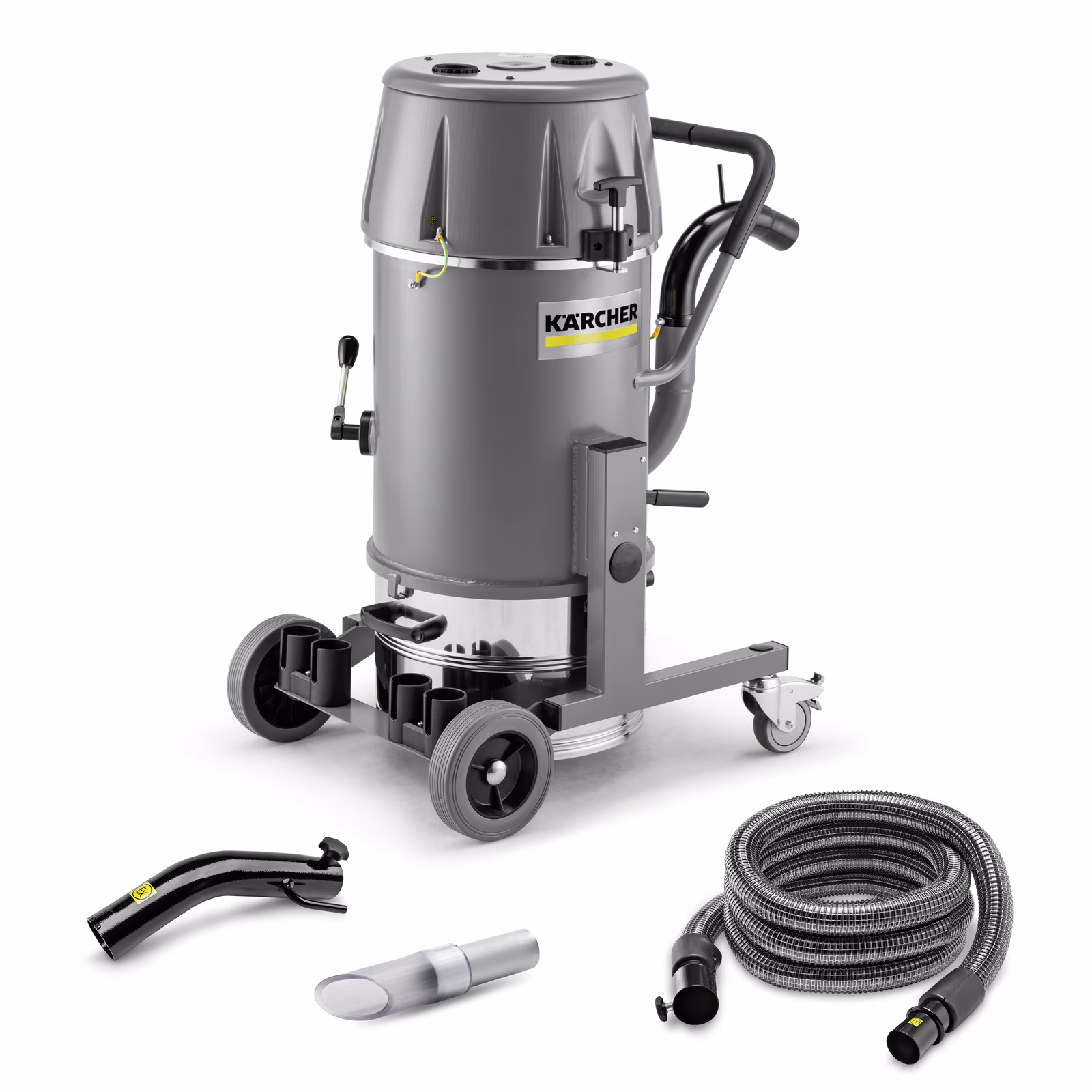

Extra-low and compact IVR 35/24-2 Sc Me M ACD Set entry-level industrial vacuum cleaner with certified filter engineering for dust class M, which ensures the safe vacuuming of small quantities of fine swarf as well as combustible and hazardous dusts (OEL ≥ 0.1 mg/m³). The robust design and the small footprint of the vacuum cleaner ensure a long service life in tough day-to-day operations in industrial settings. With two powerful bypass motors, the machine is ideal for maintenance cleaning in workshops or production halls. An internal reinforced pocket filter with large filter area (1.4 m²) and effective filter cleaning, as well as a cyclone-like pre-separation system, ensures reliable pickup of fine dusts. The stainless steel collection tank is connected to the vacuum cleaner by means of a practical and easy-to-operate set-down mechanism. The intelligent sound damping reduces the operating noise without compromising on performance. Thanks to its high-quality wheels and small dimensions, the IVR 35/24-2 Sc Me M ACD Set impresses with superb manoeuvrability and maximum versatility.

d4cfa612 b8ea 4101 9aaf dc543e893a9f 1

ACD – Applied for Combustible Dust

For the safe and economical vacuuming of combustible dusts. Conforms to the IEC 60335-2-69 standard.

IVR weld seam det 4 CI15502x502

Particularly robust, particularly flexible

With practical, movable suction hose port/pipe bend. Despite its very compact design, it features numerous options for carrying accessories. Machine and chassis very robust and equipped with high wall thicknesses.

9986065 det 2502x502

Fitted with two very quiet fan motors

For powerful suction power and optimum cleaning performance. Fans can be switched on separately for individual suction power as required. Very quiet drive head ensures that the cooling air is blown out evenly.

Convenient, manual filter cleaning

Effortless operation by means of an ergonomically placed lever if required. Extends the life of the filter and thus reduces the maintenance effort. Identical cleaning results, regardless of the amount of force used.

Equipped with large pocket filter

For safely vacuuming solids and dusts up to dust class M. For the safe and economical vacuuming of combustible dusts. Special geometry of the filter prevents suctioned solids getting caught.

Application areas

  • For small quantities of combustible and hazardous dust (OEL ≥ 0.1 mg/m³)

Specifications

Number of current phases (Ph)

1

Voltage (V)

220 - 240

Frequency (Hz)

50 - 60

Air flow (l/s / m³/h)

144 / 520

Vacuum (mbar / kPa)

235 / 23

Container capacity (l)

35

Container material

Stainless steel

Rated input power (kW)

2.4

Vacuuming type

Electric

Sound pressure level (dB(A))

68

Cable length (m)

10

Main filter dust class

M

Filter area for main filter (m²)

1.4

Colour

anthracite

Weight without accessories (kg)

55.6

Weight incl. packaging (kg)

58.8

Dimensions (L × W × H) (mm)

740 x 580 x 1088

Equipment

  • Main filter: Pocket filter
  • Accessories included with machine: yes

Made in Germany

picto Dust class M warning CMYK oth 01

picto ACD warning CMYK oth 01

Recommended maximum duration of use in hours/day.
