  • 360° working radius
  • Plastic proportionately made from recycled material

£4439.99 (inc VAT)

£3,699.99 (excl VAT)

Part number: K9990996

Compare

Features and benefits

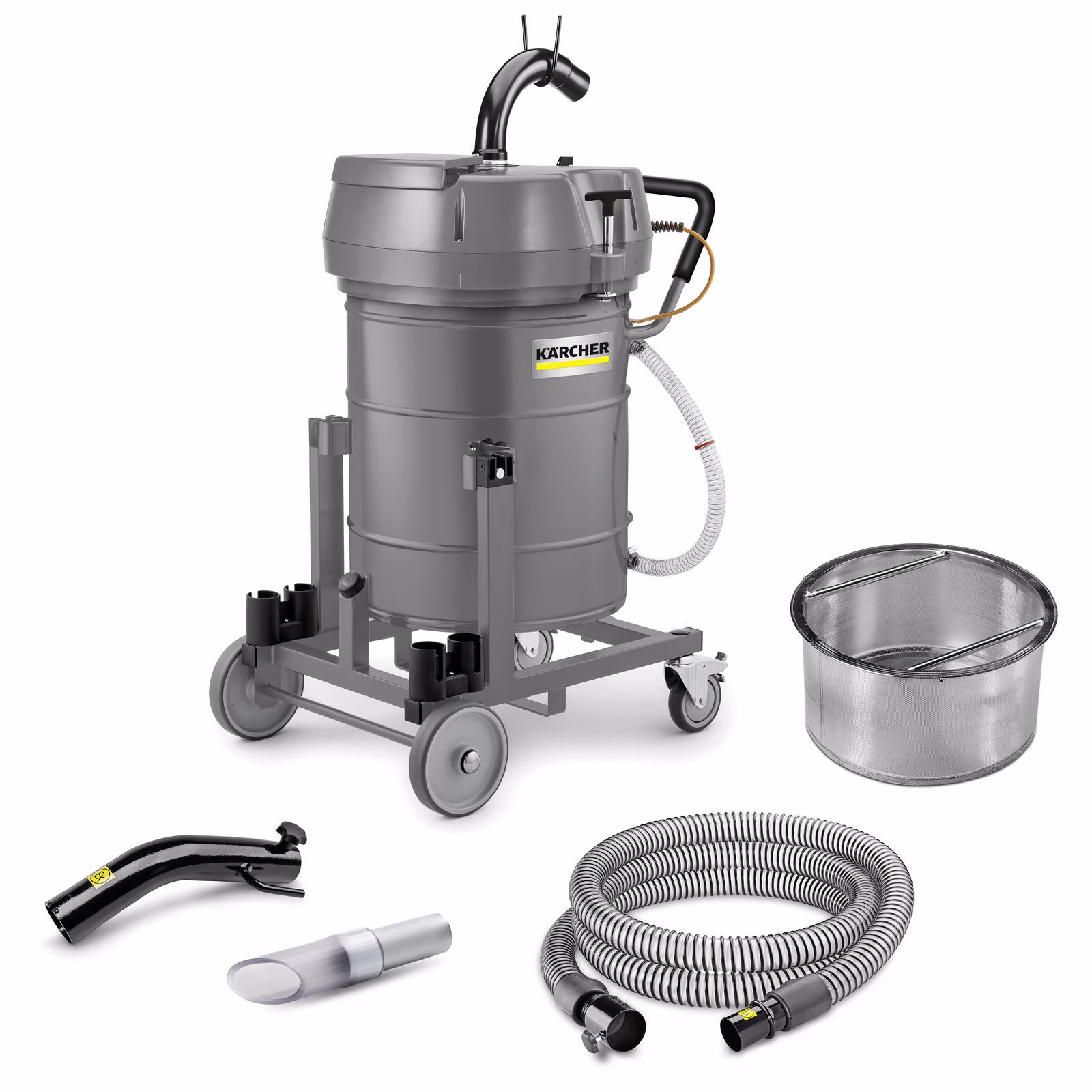

The compact IVR-L 100/24-2 Tc Set is a solid industrial vacuum cleaner with tilting chassis, 100-litre container and accessories ( 3m PU hose, handle, standard PVC nozzle and 40 ltr strainer basket). This makes the vacuum cleaner ideal for picking up large quantities of liquid and/or solids such as swarf (as dust-free as possible). The swarf basket makes it easy to separate the solids from the liquid. Thanks to the 360° rotating hose connection on the suction head, you can vacuum all around the vacuum cleaner without the suction hose getting tangled. The current filling level can be seen at all times through the drain hose. Either the drain hose or the tilting chassis can be used for emptying. The robust design, oil-resistant castors and oil-resistant power cable ensure a long service lifetime – even in the toughest industrial applications. It is even robust enough to be picked up by a forklift truck.

3c8f0a99 c90f 4fd4 be0d e2d06cfc842a

Ergonomic tilting chassis

Sophisticated system for safe, manual, effortless emptying. Frame system enables ergonomic tilted emptying using the roll-off mechanism. Quick and easy emptying of the container: just tip backwards and you're done!

9986056 det 7502x502

High robustness, flexibility and modularity

Machine and chassis very robust and equipped with high wall thicknesses. Rotatable hose connection with up to 360° rotatable pipe bend. Optionally available with overfill protection, strainer or accessories holder.

66a34d14 99e5 40c8 9fc7 c83455ea8ff1

Visual filling level indicator

Transparent hose for checking the amount of fluid absorbed. The hose is also used for easy emptying.

Fitted with two very quiet fan motors

For powerful suction power and optimum cleaning performance. Fans can be switched on separately for individual suction power as required. Very quiet drive head ensures that the cooling air is blown out evenly.

Equipped with compact surface filter of dust class L

Reliably prevents coarse particles from entering the suction turbines.

Specifications

Number of current phases (Ph)

1

Voltage (V)

220 - 240

Frequency (Hz)

50 - 60

Air flow (l/s / m³/h)

148 / 532

Vacuum (mbar / kPa)

230 / 23

Container capacity (l)

100

Container material

Steel

Rated input power (kW)

2.4

Vacuuming type

Electric

Main filter dust class

L

Filter area for main filter (m²)

0.45

Cable length (m)

10

Weight without accessories (kg)

57.4

Weight (with accessories) (kg)

57.4

Weight incl. packaging (kg)

58.1

Dimensions (L × W × H) (mm)

844 x 637 x 1330

Equipment

  • Main filter: Surface filter
  • Accessories included with machine: yes

Made in Germany
