IVR-L 65/20-2 Tc liquid and swarf vacuum with a robust design for operation with alternating current. Suitable for vacuuming medium quantities of oil and metal shavings, among other materials.



Call 01403 273 444 for best price

Compare

This device requires instruction


MAKE AN ENQUIRY


► Delivery in 1-3 working days

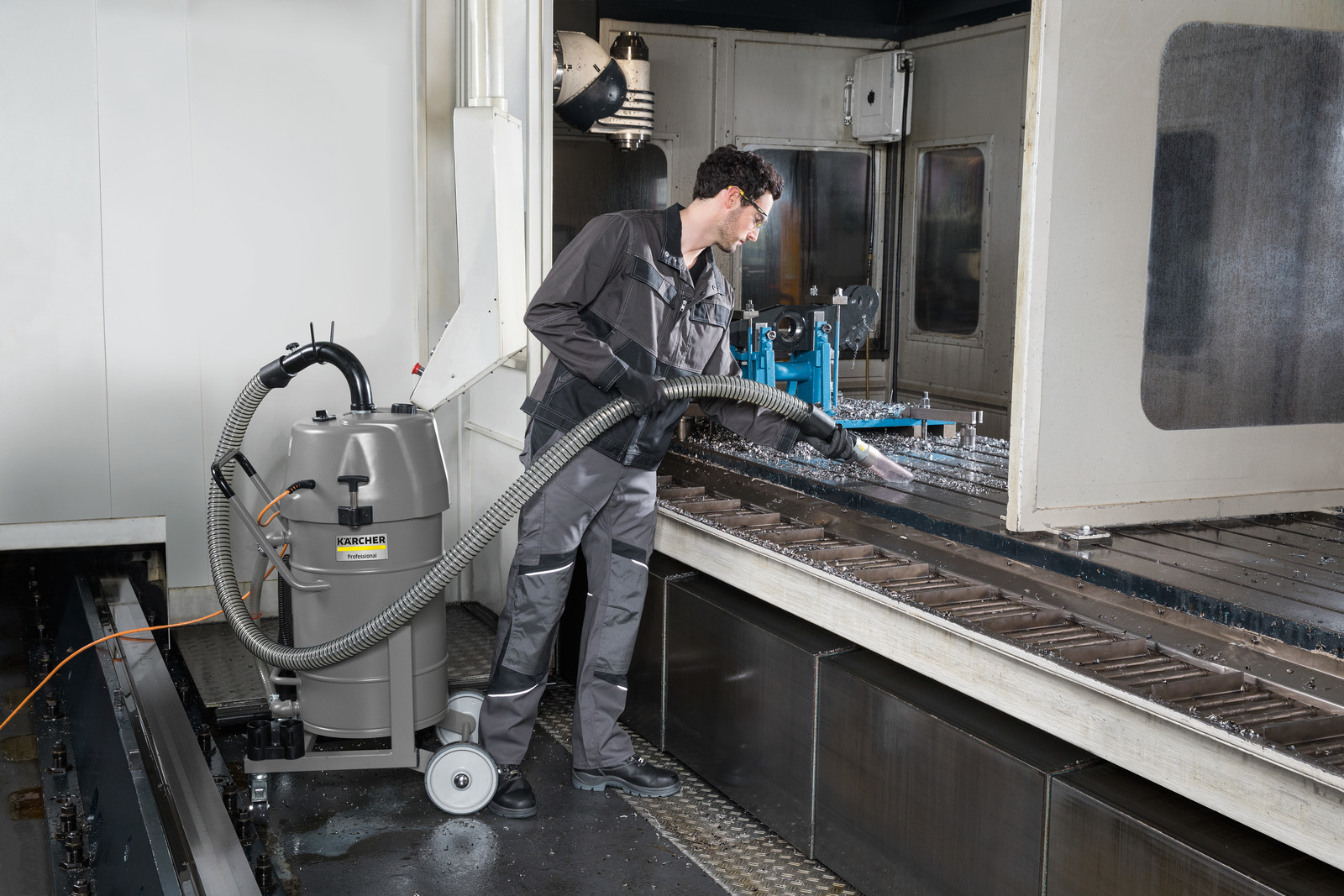

A durable, washable pocket filter and powerful two-turbine solution with a rated input power of 2 kW are the main features of the IVR-L 65/20-2 Tc mobile liquid and swarf vacuum. Together, they guarantee continuous operation and high suction power without any reduction in the filter capacity. This makes the machine ideal for vacuuming medium quantities of various suction media, such as metal shavings, oil or coolant emulsions. An integrated strainer basket ensures that solid and liquid components are separated effectively. Liquids can be disposed of separately by simply detaching the drain hose on the 65 l container. Otherwise, the emptying system with tilting chassis is used to empty the container with minimal force by tilting it using the roll-off mechanism. AC-powered with a very robust and maintenance-friendly design, the vacuum meets the key requirements for tough industrial applications. The sound-damped drive unit and an exhaust silencer also ensure low operating noise.

Features and benefits

 IVR-L 65/20-2 Tc: Emptying system with a tilting chassis enables safe manual emptying
Emptying system with a tilting chassis enables safe manual emptying
 IVR-L 65/20-2 Tc: Simple and safe emptying without removing the drive head
Simple and safe emptying without removing the drive head
 IVR-L 65/20-2 Tc: Float ball for volume flow disruption
Float ball for volume flow disruption

Specifications

Technical data

Current type (Ph/V/Hz) 1 / 220 - 240 / 50 - 60
Air flow (l/s/m³/h) 100 / 360
Vacuum (mbar/kPa) 220 / 22
Nominal size ID 50
Accessory nominal size ID 50 ID 40
Weight without accessories (kg) 46
Weight (with accessories) (kg) 42.6
Weight incl. packaging (kg) 50.6
