  • Hygienic stainless steel container
  • Wear-free side channel blower, user-friendly set-down mechanism

£7279.99 (inc VAT)

£6,066.66 (excl VAT)

Part number: K1573622

Compare

Features and benefits

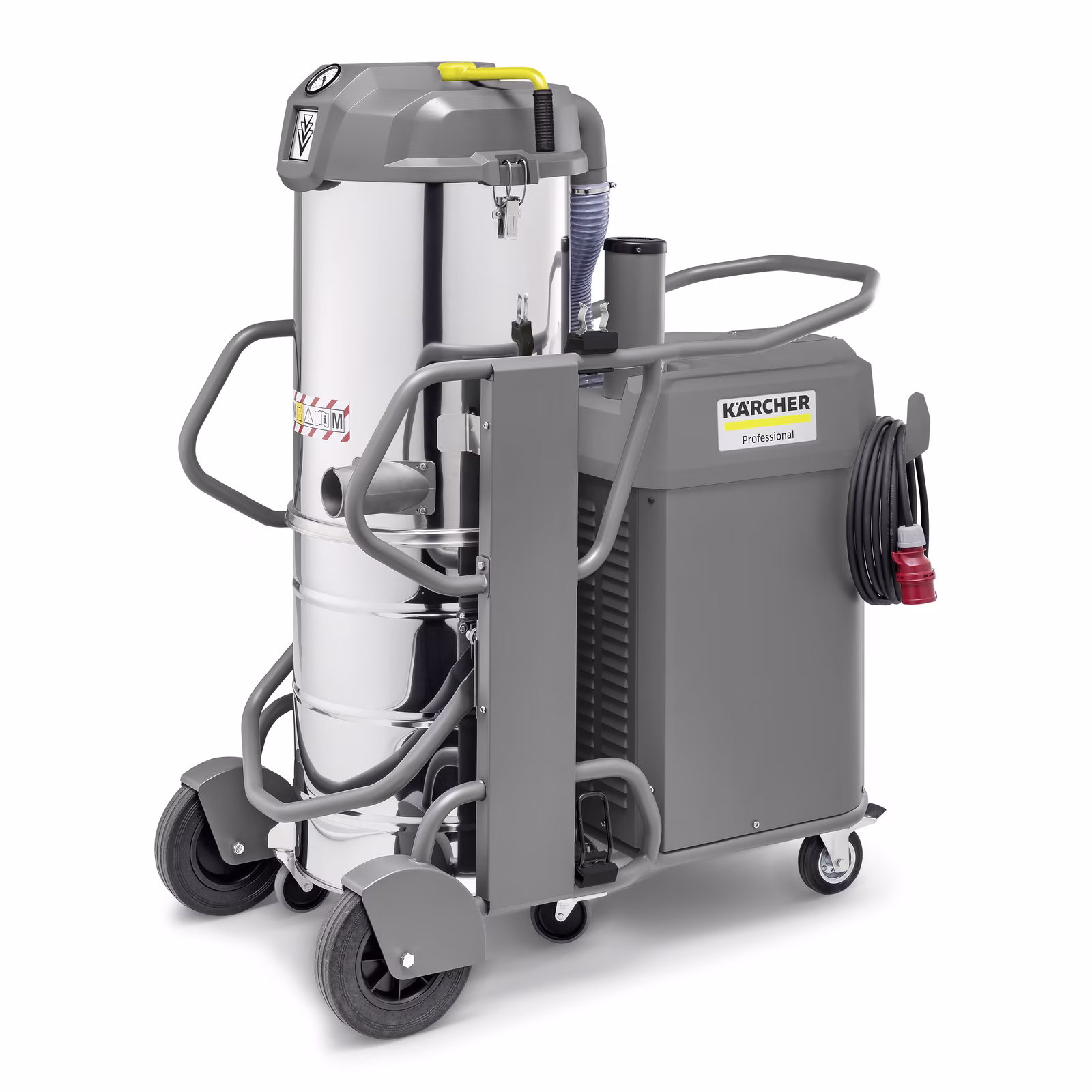

The entry-level model in our super-class industrial vacuum range with dust class M certification is already making its mark with impressive performance values and excellent equipment. The IVS 100/40 M has an efficient three-phase motor (IE2) with soft start-up in order to prevent peaks in power when starting the machine along with a powerful 4.0 kW side channel blower. The large star filter reliably picks up fine dusts that are hazardous to health, while the horizontal filter shaker means that cleaning the filter system couldn't be easier for the user. This is ensured by the integrated gearbox for targeted power transmission. How much or how little force is applied by the user therefore has no influence on the cleaning results. Another benefit is the many options for storing accessories. As a result, these are stored safely during the working day and when the machine is being transported. The IVS 100/40 M is designed for continuous operation, which is clearly demonstrated by a 100-litre stainless steel container with convenient set-down mechanism. An optional remote control supplements its wide range of equipment.

22d78962 fcb1 4e6a aef4 6a4b9c78cfd4

Dust class M

Complete device certified according to DIN EN 60335-2-69 for dust class M.

4959f407 8206 4d7d bab1 e063b841dcd2

Wear-resistant side channel compressor

With 4 kW power and soft start for vacuuming large quantities of dust and solids. For strong suction power and service life of at least 20,000 hours. Suitable for multiple shift operation and/or with multiple suction points.

1573820 det 20502x502

Manual IVS filter cleaning

Effortless operation by means of an ergonomically placed lever if required. Extends the life of the filter and thus reduces the maintenance effort. Identical cleaning results, regardless of the amount of force used.

Equipped with extra-large star filter

Also suitable for oily and adhesive dusts thanks to special coating. Also suitable for large quantities of dust.

Specifications

Number of current phases (Ph)

3

Voltage (V)

400

Frequency (Hz)

50

Air flow (l/s / m³/h)

135 / 485

Vacuum (mbar / kPa)

150 / 15

Container capacity (l)

100

Container material

Stainless steel

Rated input power (kW)

4.2

Vacuuming type

Electric

Sound pressure level (dB(A))

75

Main filter dust class

M

Filter area for main filter (m²)

2.2

Weight without accessories (kg)

142

Weight incl. packaging (kg)

148.3

Dimensions (L × W × H) (mm)

1202 x 686 x 1465

Equipment

  • Accessories included with machine: no

Made in Germany

Rostfrei Logo 4547 CMYK1 1

picto Dust class M warning CMYK oth 01

Recommended maximum duration of use in hours/day.

High-efficiency motors.
