  • Sweeper with internal combustion engine, traction drive
  • 750 mm working width, 3375 m²/h area performance, 40 l container volume
  • Flat pleated filter, side brush on the right

Part number: K1049216

Compare

Features and benefits

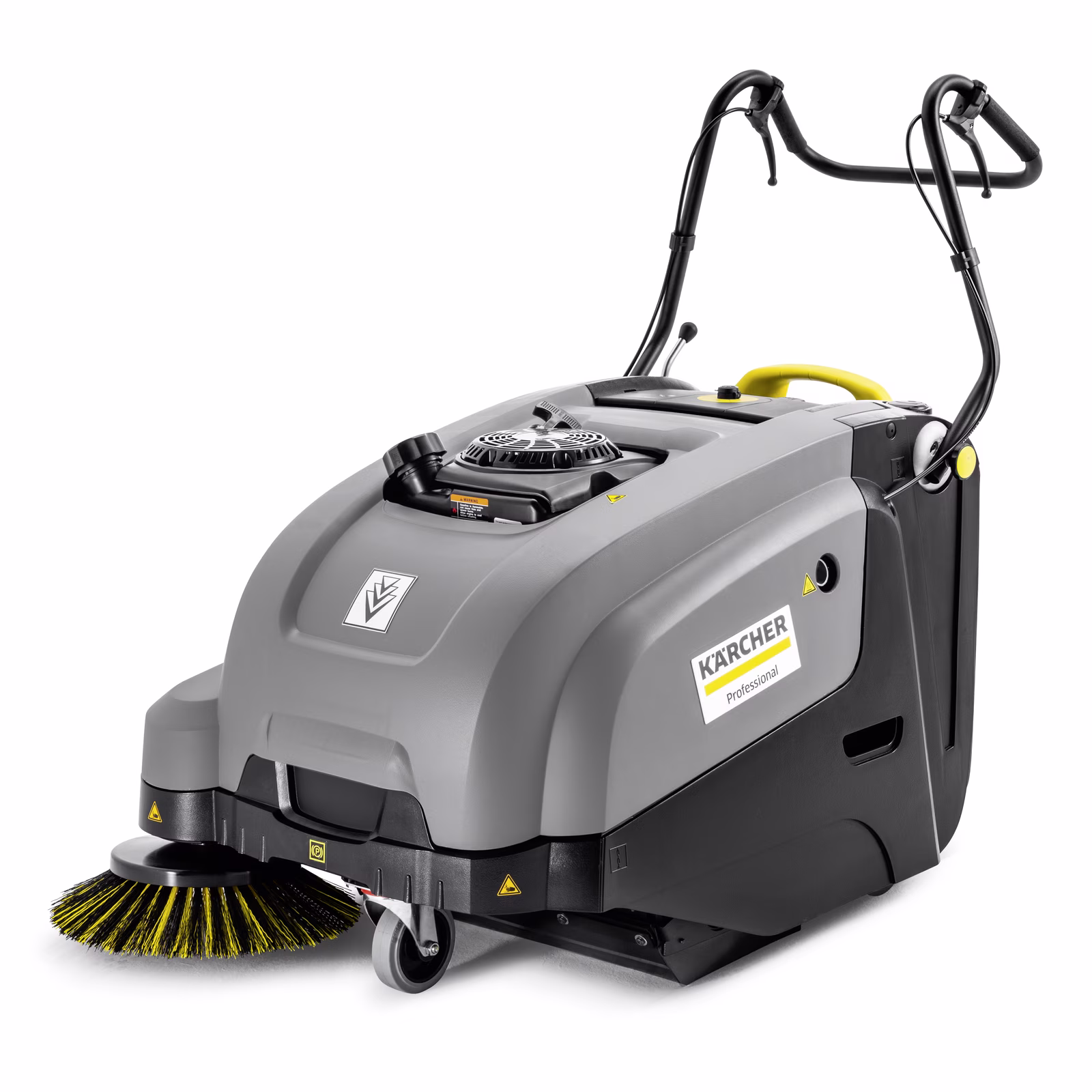

Our KM 75/40 W G push vacuum sweeper is powered by a reliable, low-emission and powerful Kohler petrol engine with 3.3 kW, which naturally complies with all applicable emission regulations. This makes it perfect for fast and thorough cleaning of outside areas larger than 600 square metres, such as car parks, playgrounds or other municipal spaces. Perfect cleaning results are ensured by the overhead sweeping principle with connectible side brush, tool-free sweeping surface adjustment and a main sweeper roller that can be changed with no tools required. The powerful suction effectively prevents dust dispersion, while efficient cleaning of the flat pleated filter ensures constant suction power. The clever EASY Operation operating concept, the movable 40-litre waste container with trolley system and the integrated traction drive with infinitely adjustable sweeping speed ensure maximum user convenience while working and therefore enable long applications with the very compact and manoeuvrable KM 75/40 W G without tiring.

1049205 det 2502x502

Waste container with trolley grip

Waste container with recessed grips - easy to remove and empty . Short disposal times.

1049205 det 3502x502

Efficient filter system with mechanical filter cleaning

1.8 m² filter area for long work intervals. Long-lasting thanks to washable polyester material. Mechanical filter cleaning system with ergonomic handle.

1049205 det 4502x502

Easy to maintain

Filter and roller brush are easy to remove without tools for flexible maintenance.

1049205 det 5502x502 1

EASY-Operation concept

Simple, convenient operation thanks to the logical arrangement of all control elements. Standard symbols for all Kärcher sweepers.

Application areas

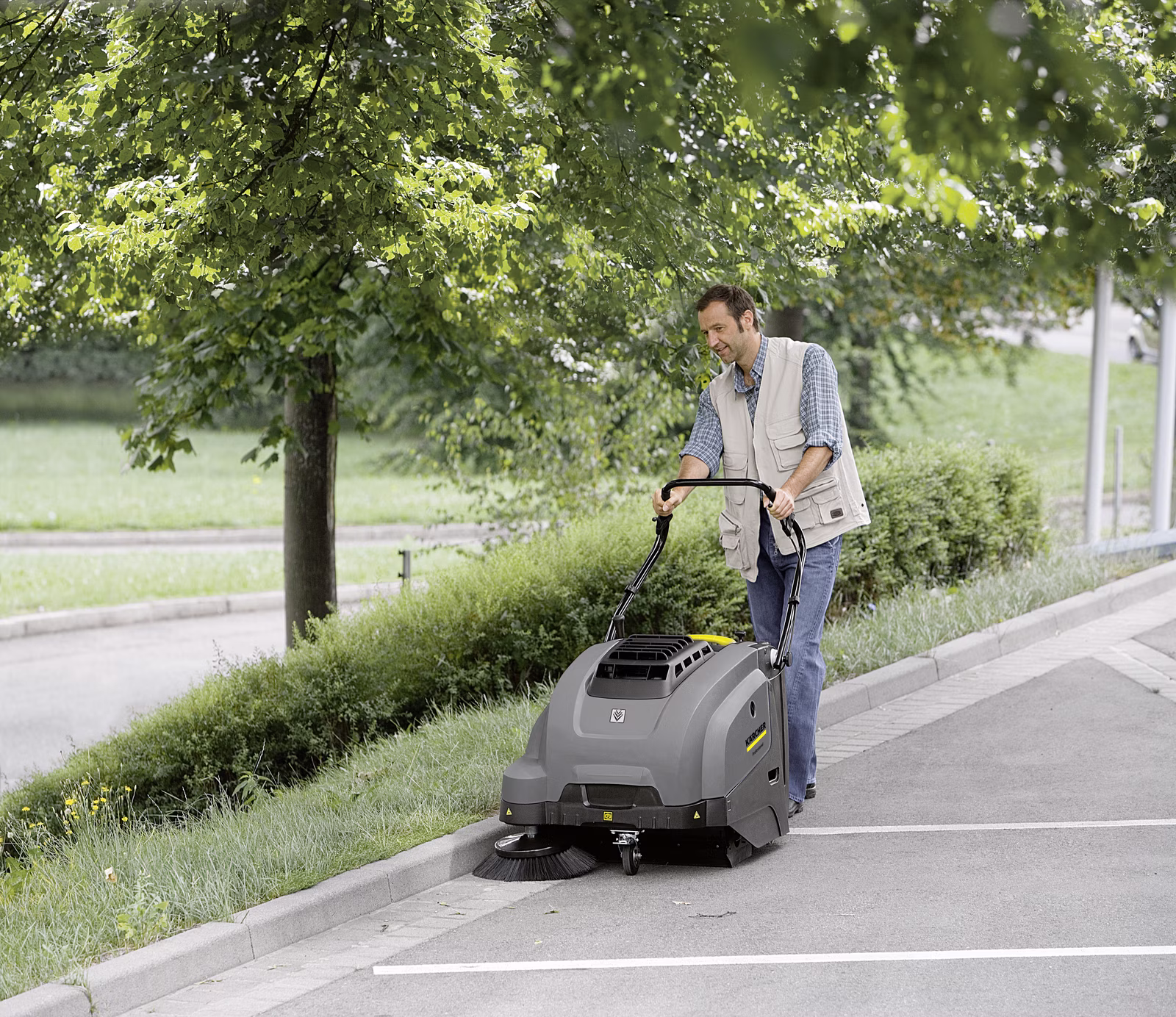

  • For cleaning car parks and service stations
  • For cleaning areas such as school yards and in the municipal environment
  • Also ideal for smaller workshops and in agriculture

Specifications

Drive type

Petrol

Drive

Four-stroke engine

Motor manufacturer

Kohler

Drive – Power (W)

3300

Max. area performance (m²/h)

3375

Working width (mm)

550

Working width with 1 side brush (mm)

750

Waste container (l)

40

Climbing ability (%)

15

Working speed (km/h)

4.5

Filter area (m²)

1.8

Weight (with accessories) (kg)

84.9

Weight, ready for operation (kg)

84

Weight incl. packaging (kg)

94.6

Dimensions (L × W × H) (mm)

1430 x 750 x 1190

Scope of supply

  • Flat pleated filter

Equipment

  • Manual filter cleaning
  • Traction drive, forwards
  • Adjustable main sweeper roller
  • Waste container, mobile
  • Coarse dirt flap
  • Foldable push handle
  • Overhead sweeping principle
  • Suction
  • Powerful traction drive
  • Outdoor use
  • Suction volume regulation
  • Side brush, can be lifted / adjustable
