The first professional battery-driven spray-extractor in the world! The Karcher Puzzi 9/1 Bp is the first professional battery-driven spray-extractor in the world. Its innovative technology allows the user to have much more mobility and clean wherever needed.
1-3 WORKING DAYS DELIVERY ON ALL ORDERS
*NEXT DAY DELIVERY AVAILABLE
£1028.40 (inc VAT)
£857.00 (excl VAT)
Part number: K1101704
► Delivery in 1-3 working days
Often purchased together
Total item price: £x (inc VAT)

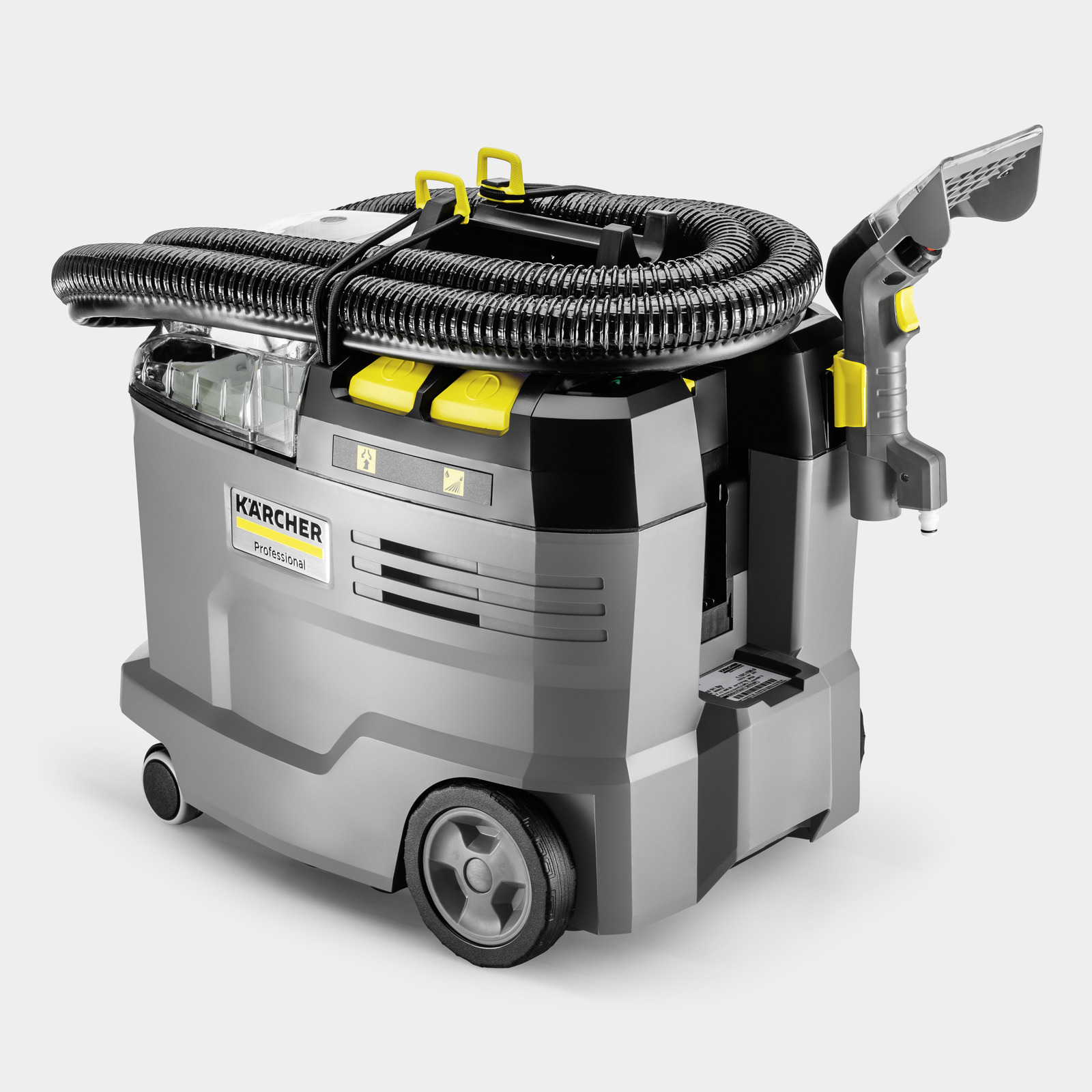

The Karcher Puzzi 9/1 Bp is the first professional battery-driven spray-extractor in the world. Its innovative technology allows the user to have much more mobility and clean wherever needed. Although its handling is simple, the machine was built to be robust and powerful, providing very good cleaning results. Compatible with Karcher 36V Power+ batteries. Battery & charger not included.
Features and benefits
Powerful Kärcher Battery Power+ 36V battery
- Real Time Technology with LCD battery display: remaining running time, remaining charging time and battery capacity.

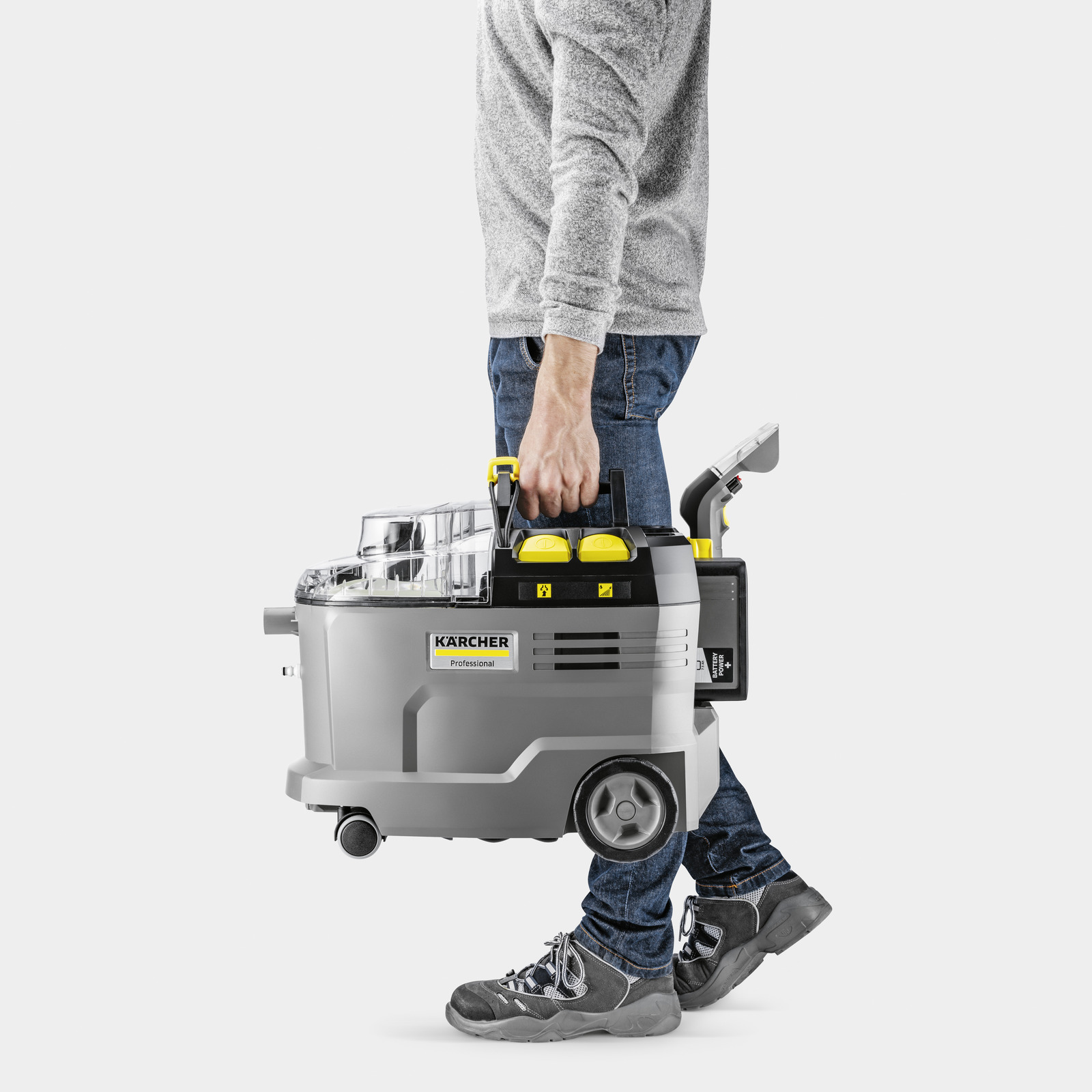

Ergonomic carrying handle

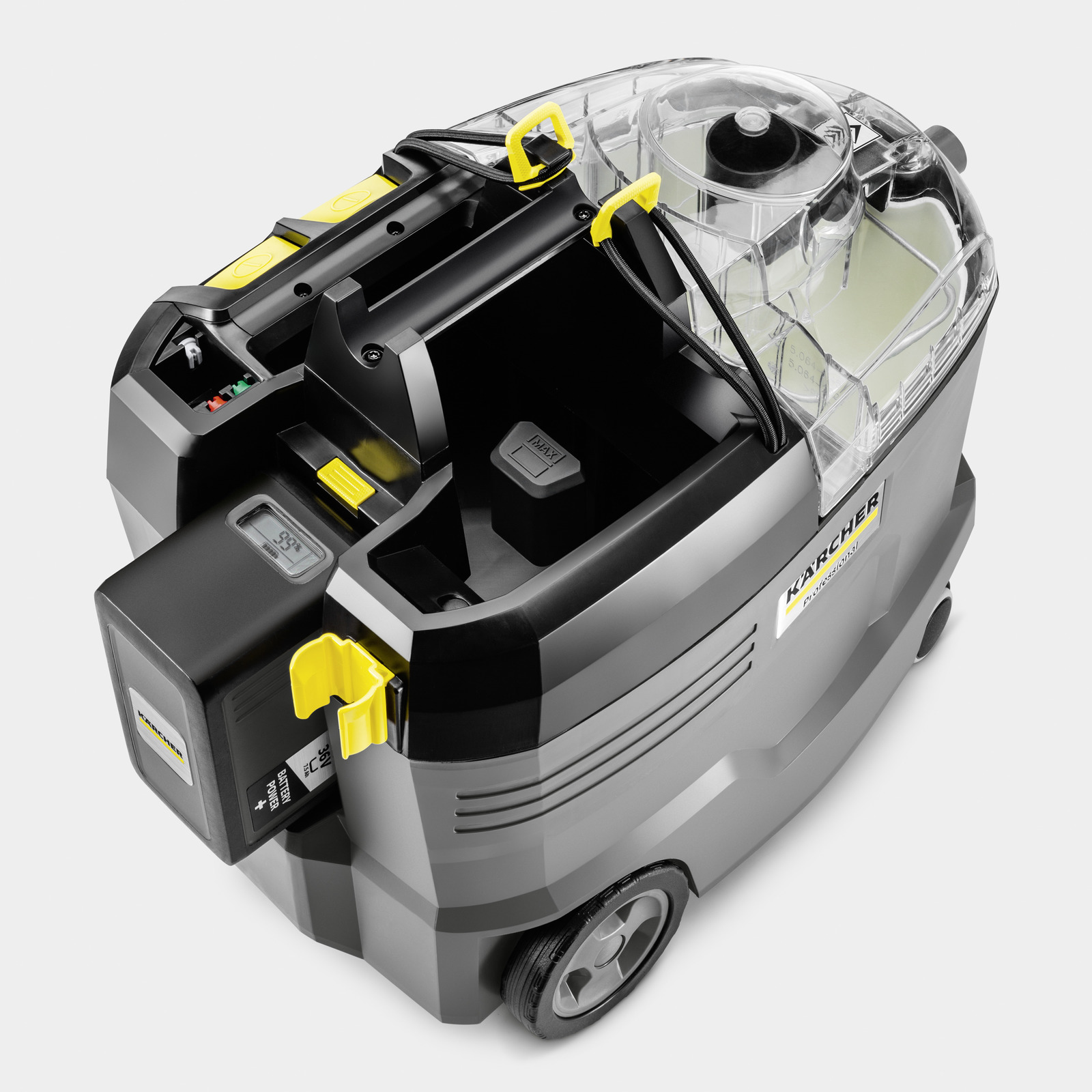

On-board accessory storage
- All of the accessories can be stowed conveniently on the machine and are therefore always close at hand.
- Secure storage, even during transport.
Specifications
Technical data
| Battery platform | 36 V battery platform |
| Area performance (m²/h) | 12 - 18 |
| Fresh/dirty water tank (l) | 9 / 7 |
| Air flow (l/s) | 57 |
| Vacuum (kPa) | 15 |
| Spray rate (l/min) | 0.5 |
| Spray pressure (MPa) | 0.16 - 0.22 |
| Power rating fan (W) | 550 |
| Power rating, pump (W) | 4 |
| Rated input power (W) | 575 |
| Sound pressure level (dB(A)) | 70 |
| Standard accessory | ID 32 |
| Battery type | Removable lithium-ion battery |
| Voltage (V) | 36 |
| Capacity (Ah) | 7.5 |
| Number of batteries required (piece(s)) | 1 |
| Runtime per battery charging (min.) | 35 (7.5 Ah) / 27 (6.0 Ah) |
| Battery charging time with fast charger 80%/100% (min.) | 58 / 81 |
| Charging current (A) | 6 |
| Power supply for battery charger (V/Hz) | 100 - 240 / 50 - 60 |
| Weight without accessories (kg) | 7.6 |
| Weight incl. packaging (kg) | 17 |
| Dimensions (L × W × H) (mm) | 540 x 332 x 460 |
Equipment
- Spray suction hose, 2.5 m
- Motor protective filter
- Compartment for detergent tablets
- Detergent, RM 767, 500 ml
Accessories
Extremely powerful Battery Power+ 36 V lithium-ion battery with a capacity of 6.0 Ah for a long runtime. With innovative Real Time Technology via LCD display and voltage monitoring.
A capacity of 7.5 Ah guarantees long running times for the Battery Power+ 36 V lithium-ion battery. Very powerful, with Real Time Technology via LCD display and protection against overcurrent.
Charge all 36 V Kärcher Battery Power and Kärcher Battery Power+ lithium-ion batteries with max. 6 A charging current: Quick charger with LED operating status indicator. Easy wall mounting.
Kit consisting of floor nozzle (240 mm), suction tube and D-handle. Transparent sight glass for checking the vacuumed dirty water. Flexible squeegee.
Floor nozzle (240 mm), individual. Transparent glass for checking the vacuumed dirty water. Flexible squeegee. Included in kit 4.130–007.0.
Cleaning Agents
200 RM760 tablets for use with the range of Karcher Puzzi machines. Removes Grease, Dust & Oil. Ideal for Vehicle Conditioning & Household Cleaning
25 RM760 tablets for use with the range of Karcher Puzzi machines. Removes Grease, Dust & Oil. Ideal for Vehicle Conditioning & Household Cleaning
50 RM760 tablets for use with the range of Karcher Puzzi machines. Removes Grease, Dust & Oil. Ideal for Vehicle Conditioning & Household Cleaning.
