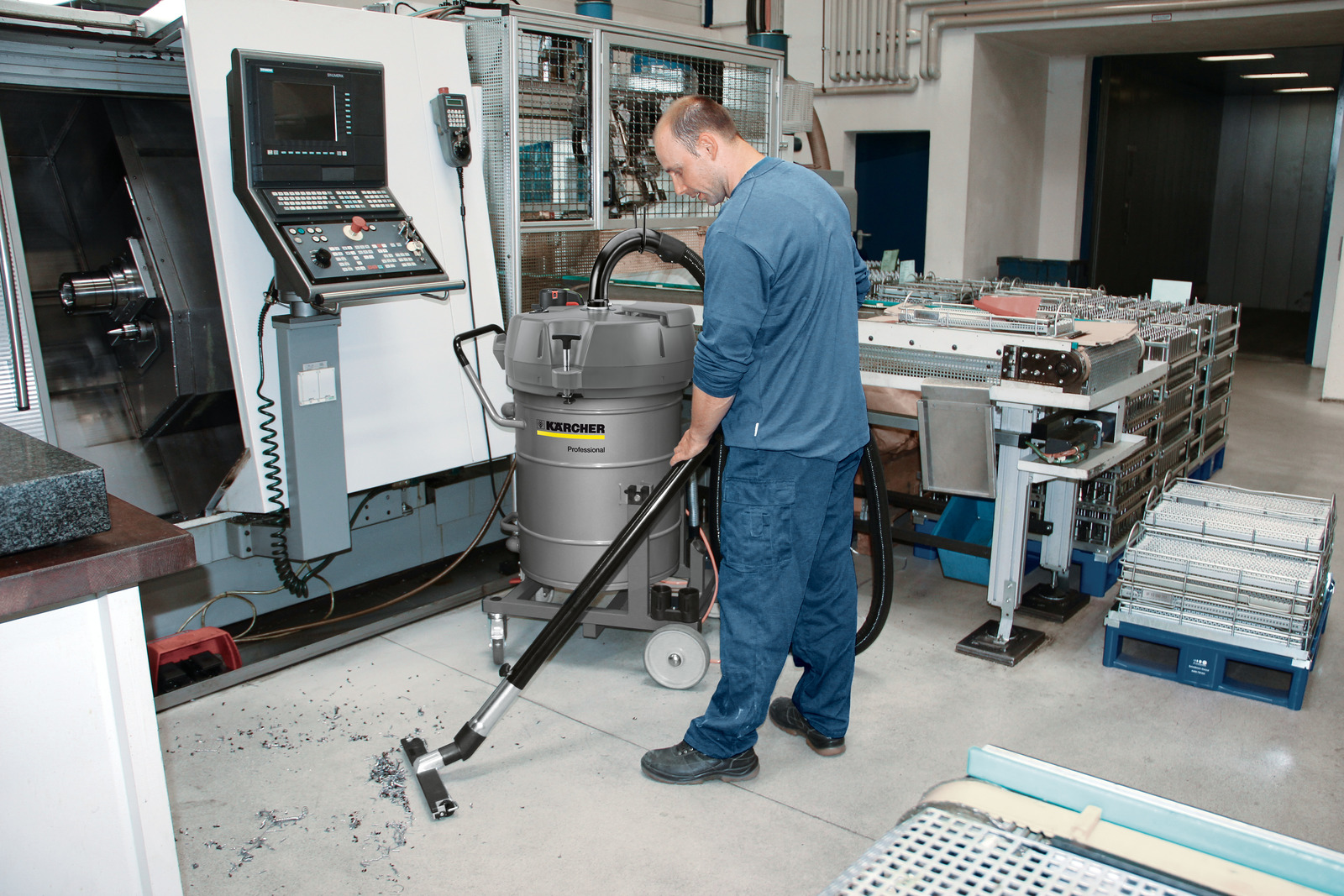

The IVR-L 100/24-2 Tc is the basic version of all IVR-L 100 Tc variants. The perfect machine for vacuuming and separating cutting fluids and shavings in the metal processing industry.
Call 01403 273 444 for best price
The compact IVR-L 100/24-2 Tc is a solid, Ringler type industrial vacuum cleaner with tilting chassis and 100-litre collecting container. This makes the vacuum ideally suited for intake of large quantities of liquids and/or solids such as shavings (as dust-free as possible). The solids can be easily separated from the liquids using the optional swarf basket. Vacuuming around the entire machine without annoying tangling of the suction hose is easy thanks to the 360° rotatable hose connection on the suction head. The current filling level is always visible on the drainage pipe. Drainage is carried out either by the drainage pipe of using the tilting chassis. The robust design, oil-resistant castors and oil-resistant power cord ensure a long service life – even in the toughest of industrial use. The robust construction also allows the machine to be picked up with a forklift.
Features and benefits

360° working radius

Safe accessory storage

Robust material and a design suitable for industrial purposes
Practical tilting chassis
Very service-friendly
Specifications
Technical data
Current type (Ph/V/Hz) | 1 / 220 - 240 / 50 - 60 |
Air flow (l/s/m³/h) | 148 / 532 |
Vacuum (mbar/kPa) | 230 / 23 |
Nominal size | ID 50 |
Accessory nominal size | ID 50 ID 40 |
Weight without accessories (kg) | 50 |
Weight (with accessories) (kg) | 50 |
Weight incl. packaging (kg) | 58 |
Equipment
- Accessories included with machine, no
